KA-KWP130_Karver Drawing Power Winch_001.PDF

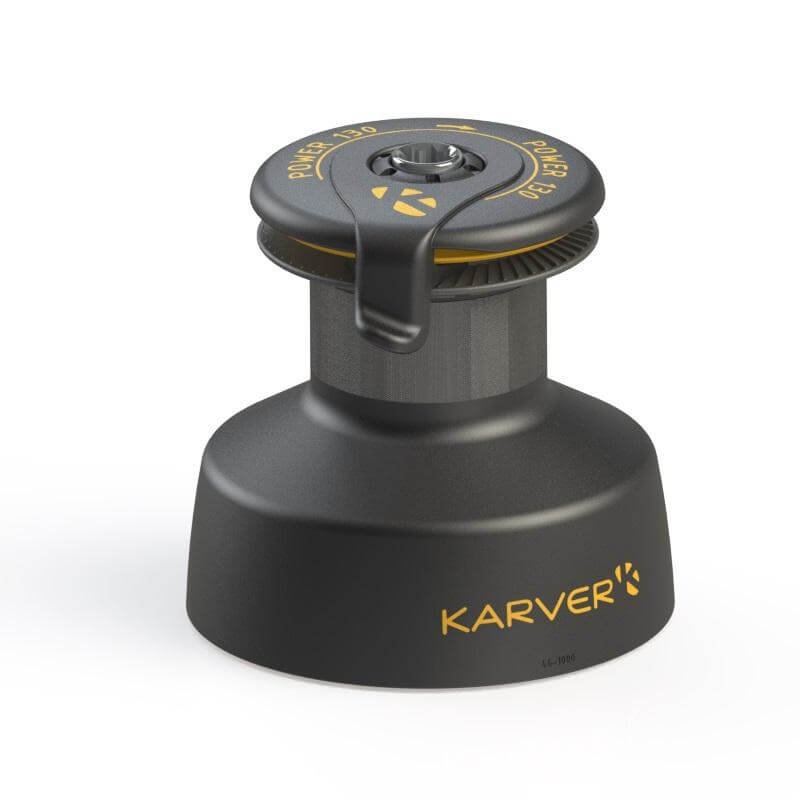

Karver 130-4 S/T Ultra Power Winch Technical Drawing
|
|
|
|
KA-KWP130_Karver 2D Drawing Power Winch_001.DWG
Karver KWP130 2D Power Winch Technical Drawing
|
|
|
|
KA-KWP130_Karver 3D Drawing Power Winch_001.IGS
Karver KWP130 3D Power Winch Technical Drawing
|
|
|
|
KA-KW_Karver Winch Specifications FR EN_001.pdf
Karver Winch Specifications Diagram-French/English
|
|
|
|
KA-KW_Karver KWS46 KWP130 Winch Template FR EN_001.PDF
Karver KWS46 KWP130 Winch Datasheet-French/English
|
|
|
|
KA_Karver Winches Main Specs EN_001.pdf
Karver Winches Datasheet
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 14 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Boat | |
|---|---|
| Style | Self-Tailing |
| Load | |
|---|---|
| SWL (kg) | 1500 |
| Dimensions | |
|---|---|
| Basis Ø (mm) | 206 |
| Trommel Ø (mm) | 100 |
| Höhe (mm) | 203 |
| Leinen Einlaufhöhe (mm) | 97 |
| Winches | |
|---|---|
| Getriebuntersetzung 1. Gang (X : 1) | 2,3 |
| Getriebuntersetzung 2. Gang (X : 1) | 6,5 |
| Getriebuntersetzung 3. Gang (X : 1) | 9,17 |
| Getriebuntersetzung 4. Gang (X : 1) | 25,85 |
| Gänge (manuell) | 4-Gang |
| Kraftuntersetzung 1. Gang (X : 1) | 11,7 |
| Kraftuntersetzung 2. Gang (X : 1) | 33 |
| Kraftuntersetzung 3. Gang (X : 1) | 46,6 |
| Kraftuntersetzung 4. Gang (X : 1) | 131,3 |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Größe | 46 |
| Weight | |
|---|---|
| Gewicht (g) | 7900 |
| Garantie (Jahren) | 5 |
