KA-KWP130_Karver Drawing Power Winch_001.PDF

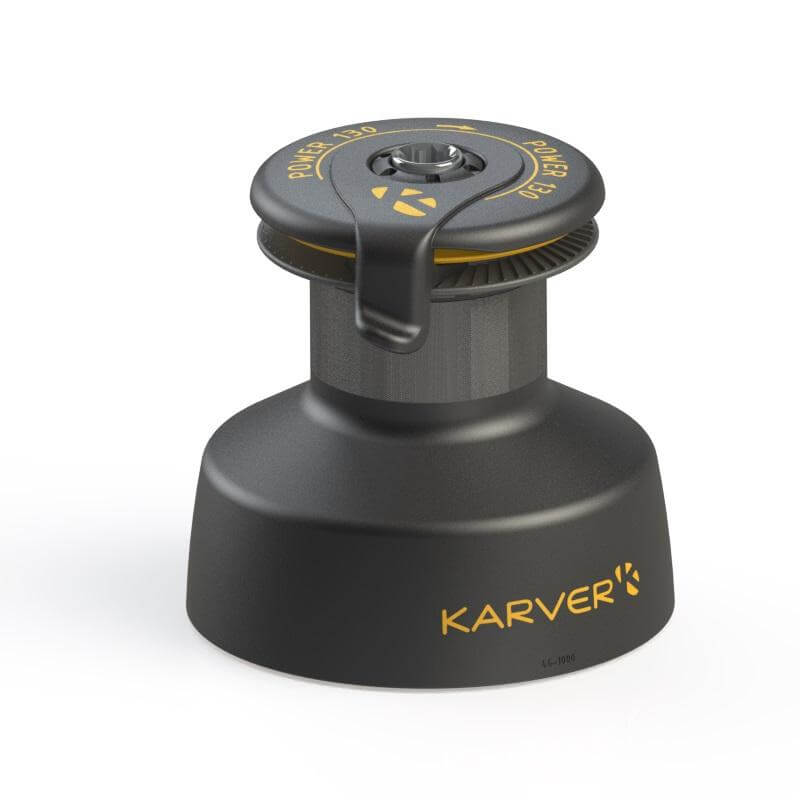

Karver 130-4 S/T Ultra Power Winch Technical Drawing
|
|
|
|
KA-KWP130_Karver 2D Drawing Power Winch_001.DWG
Karver KWP130 2D Power Winch Technical Drawing
|
|
|
|
KA-KWP130_Karver 3D Drawing Power Winch_001.IGS
Karver KWP130 3D Power Winch Technical Drawing
|
|
|
|
KA-KW_Karver Winch Specifications FR EN_001.pdf
Karver Winch Specifications Diagram-French/English
|
|
|
|
KA-KW_Karver KWS46 KWP130 Winch Template FR EN_001.PDF
Karver KWS46 KWP130 Winch Datasheet-French/English
|
|
|
|
KA_Karver Winches Main Specs EN_001.pdf
Karver Winches Datasheet
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
|---|---|
| Estilo | Autocazante |
| Load | |
|---|---|
| SWL (kg) | 1500 |
| Dimensions | |
|---|---|
| Ø de base (mm) | 206 |
| Ø del tambor (mm) | 100 |
| Altura (mm) | 203 |
| Altura de entrada del cabo (mm) | 97 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 2.3 |
| Relación de engranajes 2 (X : 1) | 6.5 |
| Relación de engranajes 3 (X : 1) | 9.17 |
| Relación de engranajes 4 (X : 1) | 25.85 |
| Velocidades (manual) | 4 velocidades |
| Relación de potencia 1 (X : 1) | 11.7 |
| Relación de potencia 2 (X : 1) | 33 |
| Relación de potencia 3 (X : 1) | 46.6 |
| Relación de potencia 4 (X : 1) | 131.3 |
| Material | |
|---|---|
| Material | Aluminio |
| Undefined | |
|---|---|
| Tamaño | 46 |
| Weight | |
|---|---|
| Peso (g) | 7900 |
| Garantía (años) | 5 años |
