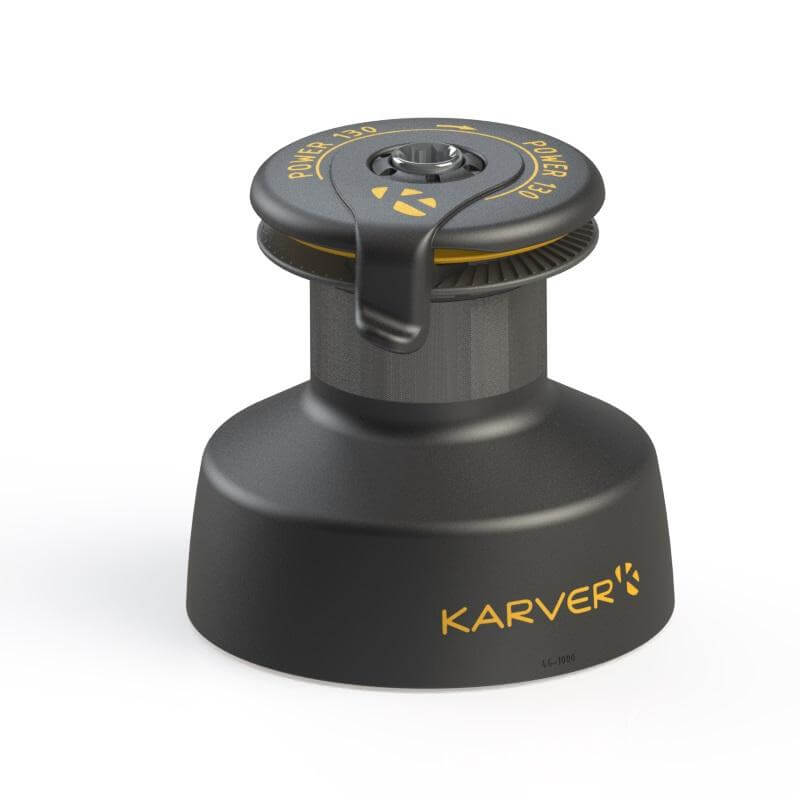

Karver 130 4-Speed S/T Ultra Power Winch

Pontos winches by Karver are based on epicyclic gear trains associated with automatic load detection technology. Depending on the choice of model this approach can offer either 3 times more power (KPW) or 6 times more speed (KSW) compared to all other winches on the market.

The automatic four-speed gearing mechanism of the Power range provides additional winching power when you need it most. Changing gear is simple. When too much pressure builds up on the winch handle, just reverse the direction and the next gear is engaged. Once the line pressure is off, the winch reverts to the most suitable gearing for the next time you winch. The ultra-power gear reduces effort by more than 50% whilst doubling the torque meaning anyone can trim and fine-tune even the largest sails aboard.

The drum is constructed in hard anodized aluminium, gears and clutch in 17.4 PH stainless steel and copper aluminium alloy and needle bearings in polyoxymethylene. All winches are self-tailing, enabling single handed sail trimming. All Pontos winches by Karver feature a 5 year warranty.

Specifications

Specifications for Karver 130 4-Speed S/T Ultra Power Winch

Ropes
Recommended line - Max Ø (mm)	14
Recommended line - Min Ø (mm)	8
Boat
Style	Self-Tailing
Load
SWL (kg)	1500
Dimensions
Base Ø (mm)	206
Drum Ø (mm)	100
Height (mm)	203
Line entry height (mm)	97
Winches
Gear ratio 1 (X : 1)	2.3
Gear ratio 2 (X : 1)	6.5
Gear ratio 3 (X : 1)	9.17
Gear ratio 4 (X : 1)	25.85
Gears (Manual)	4-Speed
Power ratio 1 (X : 1)	11.7
Power ratio 2 (X : 1)	33
Power ratio 3 (X : 1)	46.6
Power ratio 4 (X : 1)	131.3
Material
Material	Aluminium
Undefined
Size	46
Weight
Weight (g)	7900
Warranty (yrs)	5

Product specifications are provided for guidance only, subject to error / change and without warranty or guarantee. Refer to manufacturer’s own datasheets / manuals for further information.

Media

	KA-KWP130_Karver Drawing Power Winch_001.PDF Karver 130-4 S/T Ultra Power Winch Technical Drawing
	KA-KWP130_Karver 2D Drawing Power Winch_001.DWG Karver KWP130 2D Power Winch Technical Drawing
	KA-KWP130_Karver 3D Drawing Power Winch_001.IGS Karver KWP130 3D Power Winch Technical Drawing
	KA-KW_Karver Winch Specifications FR EN_001.pdf Karver Winch Specifications Diagram-French/English
	KA-KW_Karver KWS46 KWP130 Winch Template FR EN_001.PDF Karver KWS46 KWP130 Winch Datasheet-French/English
	KA_Karver Winches Main Specs EN_001.pdf Karver Winches Datasheet
