D Rings
D rings are stainless steel rings with one straight side, so webbing or sailcloth sewn round that side lies flat and takes the load evenly. On a boat they make attachment points on straps, covers, sails and harness lines. We stock welded 316 stainless D rings from Sea Sure and a forged 316L ring from Wichard, all with a 5 mm bar. Read more...
What D rings do on a boat
A D ring turns a strap or a piece of sailcloth into a fixing point. The webbing is folded round the straight side and stitched, so the load spreads across its full width instead of bunching at one point, as it would on a round ring. The curved side then takes a shackle, a soft shackle, a lashing or a hook. Typical uses are toe straps and hiking straps, trampoline and cover lashings, the ends of webbing straps, and reinforcement points sewn into dinghy sails and spray dodgers.
D rings, O rings or triangles?
The three shapes do different jobs. A D ring has one side for a flat strap and one for a connector, so the load pulls in one direction. An O ring has no preferred side and suits lines or shackles pulling from several directions, as at the centre of a bridle. A stainless triangle spreads one strap or line into two. None of them is a fairlead: for a line running under load, use a low friction ring, which is made for that.
Sizing D rings to the webbing

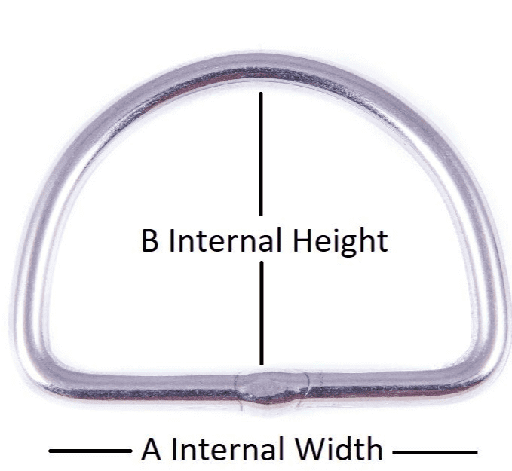

The inside length of the straight side has to take the webbing flat, with a little room to spare, so measure the strap width first. The Sea Sure D ring sizes run from 25 × 17 mm to 50 × 35 mm, and the Wichard ring has a 30 mm inside dimension. All have a 5 mm bar, which suits a shackle pin or soft shackle of matching size.
| D ring | Size | Bar | Construction | Breaking load |
|---|---|---|---|---|
| Sea Sure | 25 × 17 mm | 5 mm | Welded, 316 stainless | 3,000 kg |
| Sea Sure | 40 × 25 mm | 5 mm | Welded, 316 stainless | 3,000 kg |
| Sea Sure | 45 × 33 mm | 5 mm | Welded, 316 stainless | 3,000 kg |
| Sea Sure | 50 × 35 mm | 5 mm | Welded, 316 stainless | 3,000 kg |
| Wichard | 30 mm inside | 5 mm | Forged, 316L stainless | 2,000 kg |
Welded or forged: how stainless D rings are made

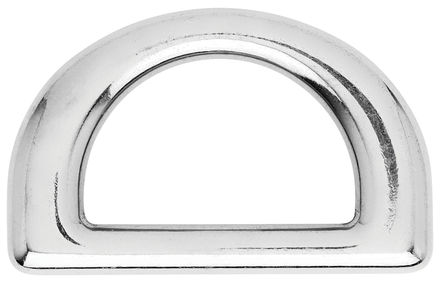

A ring is either bent from bar and welded closed, or forged in one piece. Sea Sure hand-welds its rings with a full-penetration weld, so the joint goes through the whole bar, and can supply a breaking load certificate on request. Wichard hot-drop-forges its D ring from a single piece of 316L stainless, so there is no joint at all. Either way, compare the stated breaking load rather than the bar size, and never load a ring sideways across the straight side.
Breaking load and working load
The figures in the table are breaking loads, not working loads. Riggers usually keep the working load to a fraction of the breaking load, so a 3,000 kg ring is not a 3,000 kg fixing. The weakest part of the assembly is usually the stitching, the webbing or the fixing, not the ring.
Sea Sure and Wichard D rings
Sea Sure D rings are made in Warsash, on the River Hamble, where Sea Sure has built dinghy and small keelboat hardware since the 1960s. The Wichard forged D ring is stamped with Wichard's "W" logo and "316L". For more ring shapes, see all our sailing rings.
D rings FAQ
Soft shackle or D ring?
They do different jobs and are often used together. The D ring is the fixed point sewn into the strap; a soft shackle is the light, removable connector that clips onto it.
What size D ring do I need for 25 mm webbing?
One whose straight side measures more than 25 mm inside, so the strap lies flat without folding at the corners. Check the inside length, not the outside size.
How should a D ring be sewn on?
By a sailmaker or canvas maker, with the webbing folded round the straight side and stitched in a pattern that spreads the load. Use UV-resistant thread, as sunlight degrades stitching long before the ring wears.
Can I use a D ring as a fairlead?
Not for a line running under load: the sharp radius and stainless surface chafe the rope. Use a low friction ring instead.
