KA-KB12_Karver Drawing Roller Bearing Block_001.PDF
Karver KB12 Roller Bearing Block Technical Drawing
|
|
|
|
KA-KB_Karver Drawing Roller Bearing Block Range_001.PDF
Karver KB Roller Bearing Block Technical Drawing
|
|
|
|
KA-KB12_Karver 2D Drawing Roller Bearing Block_001.DWG
Karver KB12 2D Roller Bearing Block Technical Drawing
|
|
|
|
KA-KB_Karver 2D Drawing Roller Bearing Block Range_001.DWG
Karver KB 2D Roller Bearing Blocks Technical Drawing
|
|
|
|
KA-KB12_Karver 3D Drawing Roller Bearing Block_001.IGS
Karver KB12 3D Roller Bearing Block Technical Drawing
|

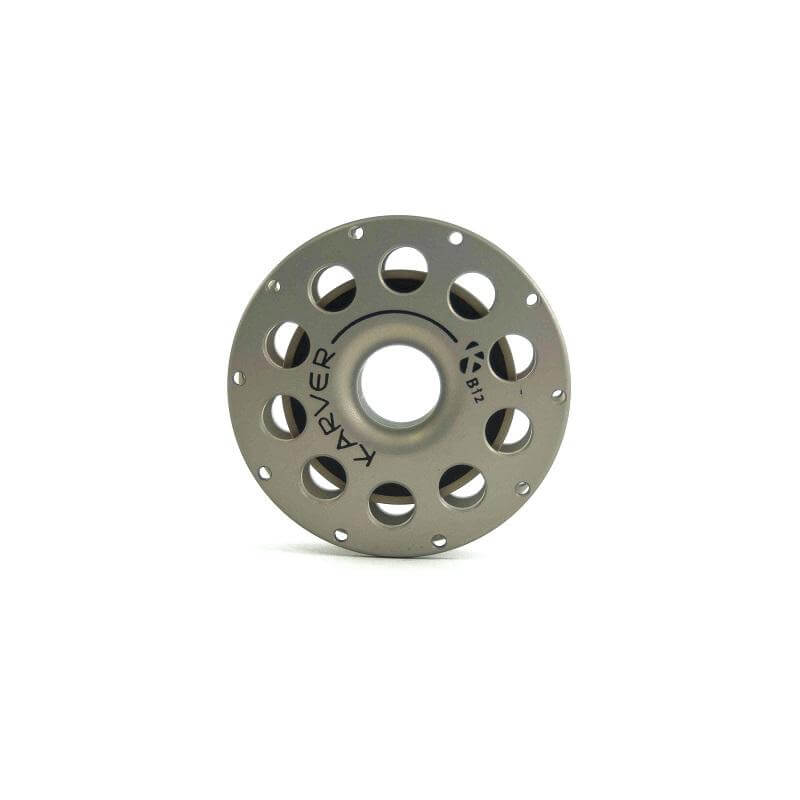

This award winning range of KB blocks is lightweight and versatile. Designed specifically to be used with lashings the same block can be used in multiple different configurations and reduces weight to approx 50% compared to a traditional block, plus connection, for the same working load. With the primary attachment through the centre of the block this is also extremely safe as the running line will be retained within the lashing even if the block should fail. The KB12 block has aluminium cheeks, an aluminium sheave and Peek roller bearing. They have been specifically designed for general use.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1400 |
| NBL (kg) | 2800 |
| Blocks | |
|---|---|
| Ratsche | Nein |
| Dimensions | |
|---|---|
| Innendurchmesser (mm) | 19 |
| Scheibe Ø (mm) | 54 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Gewicht (g) | 119 |
