Sale

Karver KB12 Roller bearing block

$ 327.75 327.75 USD $ 345.00

298.78 €

5% Off

Recommended line - Max Ø (mm)
Brand
Range
SWL (kg)
- 1400
NBL (kg)
- 2800
Number of sheaves
Becket
Cleat
Ratchet
Inside Ø (mm)
Sheave Ø (mm)
- 54
Swivel
Mounting
Weight (g)

This combination does not exist.

Unit(s)

ADD TO CART

Runner blocks

Karver KB12 Roller bearing block

~~$ 345.00~~ $ 327.75

5% Off

Add to Cart

SKU:

N/A

Brand: Karver

30-day money-back

14-day returns

Express shipping available

Description

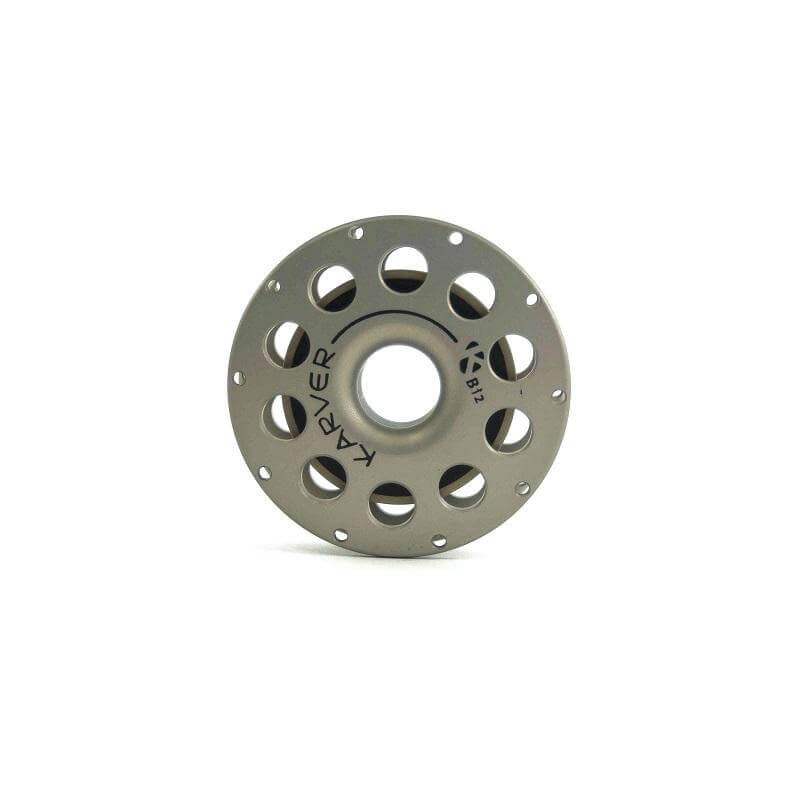

This award winning range of KB blocks is lightweight and versatile. Designed specifically to be used with lashings the same block can be used in multiple different configurations and reduces weight to approx 50% compared to a traditional block, plus connection, for the same working load. With the primary attachment through the centre of the block this is also extremely safe as the running line will be retained within the lashing even if the block should fail. The KB12 block has aluminium cheeks, an aluminium sheave and Peek roller bearing. They have been specifically designed for general use.

Specifications

Specifications for Karver KB12 Roller bearing block

Ropes
Recommended line - Max Ø (mm)	12
Boat
Load
SWL (kg)	1400
NBL (kg)	2800
Blocks
Ratchet	No
Dimensions
Inside Ø (mm)	19
Sheave Ø (mm)	54
Furling
Compatibility
Weight
Weight (g)	119

Product specifications are provided for guidance only, subject to error / change and without warranty or guarantee. Refer to manufacturer’s own datasheets / manuals for further information.

Media

	KA-KB12_Karver Drawing Roller Bearing Block_001.PDF Karver KB12 Roller Bearing Block Technical Drawing
	KA-KB_Karver Drawing Roller Bearing Block Range_001.PDF Karver KB Roller Bearing Block Technical Drawing
	KA-KB12_Karver 2D Drawing Roller Bearing Block_001.DWG Karver KB12 2D Roller Bearing Block Technical Drawing
	KA-KB_Karver 2D Drawing Roller Bearing Block Range_001.DWG Karver KB 2D Roller Bearing Blocks Technical Drawing
	KA-KB12_Karver 3D Drawing Roller Bearing Block_001.IGS Karver KB12 3D Roller Bearing Block Technical Drawing

Specifications

Ropes
Recommended line - Max Ø (mm)	12

Boat

Load
SWL (kg)	1400
NBL (kg)	2800

Blocks
Ratchet	No

Dimensions
Inside Ø (mm)	19
Sheave Ø (mm)	54

Furling

Compatibility

Weight
Weight (g)	119
