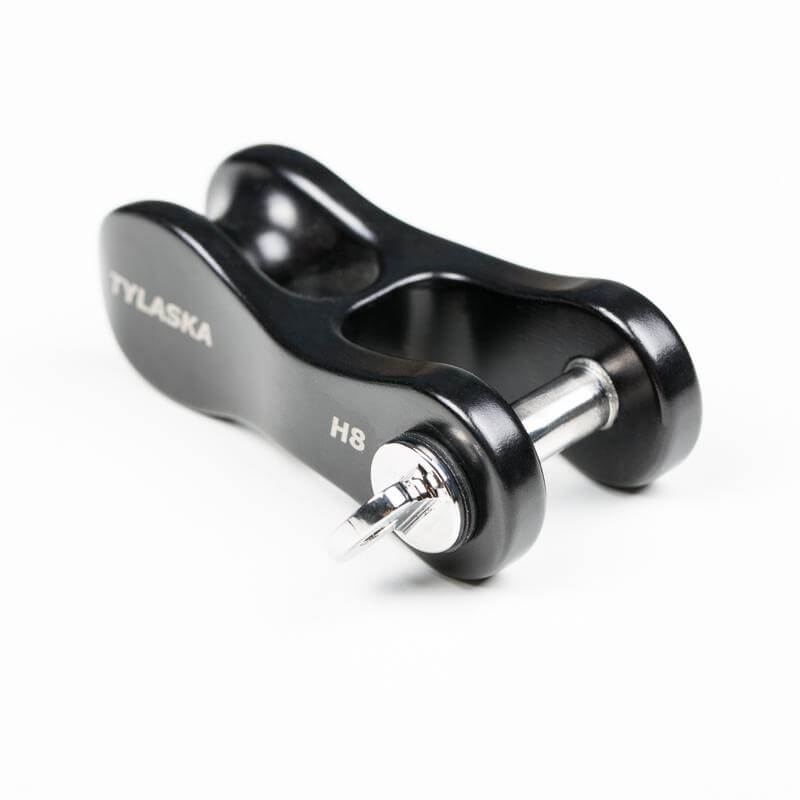

Specifications for Tylaska H8 Aluminium-Fallschäkel
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 10 |
| Boat | |
| Empfohlene max. Bootsgröße (ft.) | 36 |
| Empfohlene min. Bootsgröße (ft.) | 24 |
| Load | |
| SWL (kg) | 1818 |
| NBL (kg) | 3636 |
| Dimensions | |
| A (mm) | 80 |
| B (mm) | 33,4 |
| C (mm) | 7,1 |
| D (mm) | 38,1 |
| E (mm) | 21,6 |
| F (mm) | 19,3 |
| G (mm) | 14,2 |
| H (mm) | 25,4 |
| I (mm) | 25,4 |
| J (mm) | 8,1 |
| Material | |
| Material | 17-4PH |
| Weight | |
| Gewicht (g) | 88 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.
