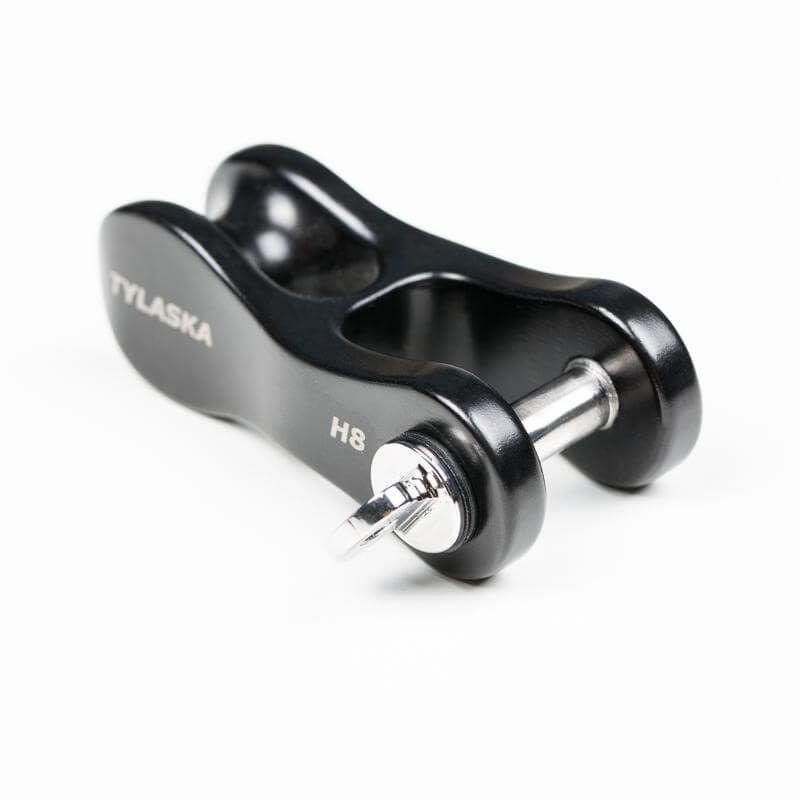

Specifications for Tylaska H8 Grillo per drizza in alluminio
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 12 |
| Cima consigliata - Ø Min (mm) | 10 |
| Boat | |
| Dimensione barca consigliata - Max (ft) | 36 |
| Dimensione barca consigliata - Min (ft) | 24 |
| Load | |
| SWL (kg) | 1818 |
| NBL (kg) | 3636 |
| Dimensions | |
| A (mm) | 80 |
| B (mm) | 33.4 |
| C (mm) | 7.1 |
| D (mm) | 38.1 |
| E (mm) | 21.6 |
| F (mm) | 19.3 |
| G (mm) | 14.2 |
| H (mm) | 25.4 |
| I (mm) | 25.4 |
| J (mm) | 8.1 |
| Material | |
| Materiale | 17-4PH |
| Weight | |
| Peso (g) | 88 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Tylaska’s halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 12 |
| Cima consigliata - Ø Min (mm) | 10 |
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 36 |
| Dimensione barca consigliata - Min (ft) | 24 |
| Load | |
|---|---|
| SWL (kg) | 1818 |
| NBL (kg) | 3636 |
| Dimensions | |
|---|---|
| A (mm) | 80 |
| B (mm) | 33.4 |
| C (mm) | 7.1 |
| D (mm) | 38.1 |
| E (mm) | 21.6 |
| F (mm) | 19.3 |
| G (mm) | 14.2 |
| H (mm) | 25.4 |
| I (mm) | 25.4 |
| J (mm) | 8.1 |
| Material | |
|---|---|
| Materiale | 17-4PH |
| Weight | |
|---|---|
| Peso (g) | 88 |
