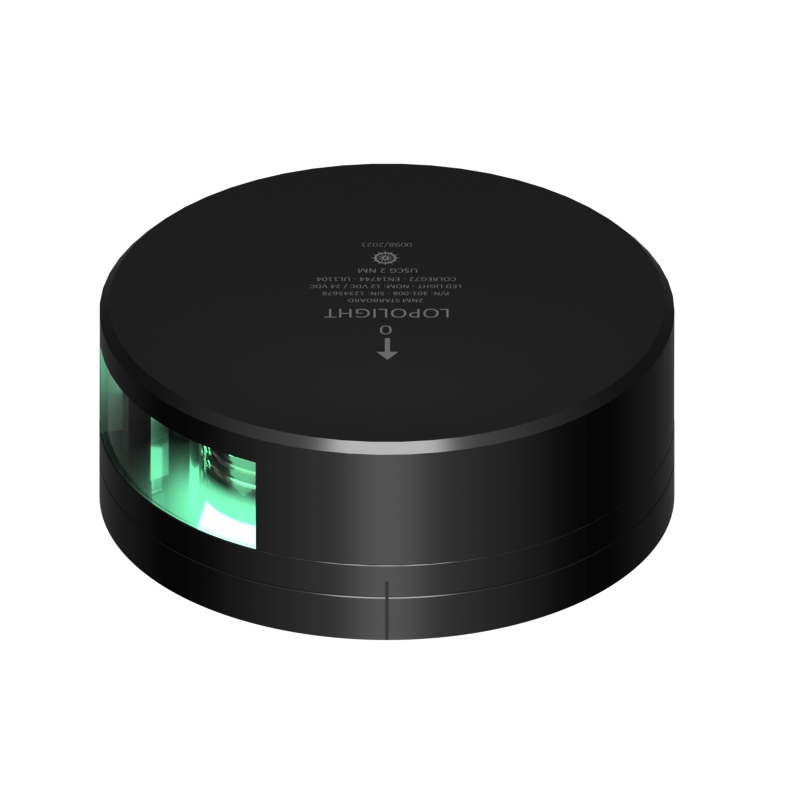

    Lopolight 2NM 112.5° Starboard Sidelight – Horizontal Mount, 2.5m Cable (Silver or Black Anodised)

    [For vessels under 20m – LED navigation light]


    The Lopolight 2NM Starboard Sidelight in horizontal mount configuration is designed for vessels under 20 metres, providing a precise 112.5° green beam visible to 2 nautical miles. This model is ideal for deck, coaming, or cabin roof installations where a horizontal footprint is preferred.

    Crafted from anodised aluminium, the light is available in Silver or Black finishes to match the vessel’s design. Rated IP68, the sealed housing and epoxy-filled electronics deliver long-term durability against saltwater, vibration, and UV exposure.

    The 2.5-metre marine-grade cable provides a standard-length connection suitable for most installations.

    Key Features:

    • Suitable for vessels under 20 metres
    • 112.5° green beam, visible to 2NM
    • Horizontal mount – ideal for deck, coaming, or cabin installation
    • Available in Silver or Black anodised aluminium housing
    • IP68 sealed with epoxy-filled electronics for marine durability
    • Supplied with 2.5m marine-grade cable
    • Low power draw – ~2 W at 10–32 V
    • Fully compliant with COLREG72, EN14744, and USCG standards
    • Alternative version available with 6m cable connection

    Spezifikationen

    Electrics
    Spannung unter Betrieb 10-32
    Power supply type dc.
    Current draw (mA @ 12VDC) 110
    Current draw (mA @ 24VDC) 60
    Leistung (W) 1.4
    Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
    Luminous Intensity (cd) >5.4
    Operating temperature -25°C to 55°C
    Sichtweite (NM) 2
    Wasserdichtigkeit IP68
    Boat
    Boat size (m) Unter 12 m oder 12–20 m oder 20–50 m
    Dimensions
    Dimensions (mm) Ø92,5mm x 46mm
    Rigging
    Feed wire gauge Min 0.5mm2 AWG22
    Material
    Material silber eloxiertes Aluminium 25µ, PMMA-Linse, A4-Edelstahlschrauben, Epoxidharz, Polyurethan oder schwarz eloxiertes Aluminium 25µ, PMMA-Linse, A4-Edelstahlschrauben, Epoxidharz, Polyurethan
    Undefined
    Farbe Schwarz oder Silber
    Compatibility
    Connection 2,5 m Kabel
    Weight
    Gewicht (g) 570
    Garantie (Jahren) 5 Jahre eingeschränkte Garantie
