Lopolight 2NM 112.5° Starboard Sidelight – Horizontal Mount, 2.5m Cable (Silver or Black Anodised)

[For vessels under 20m – LED navigation light]

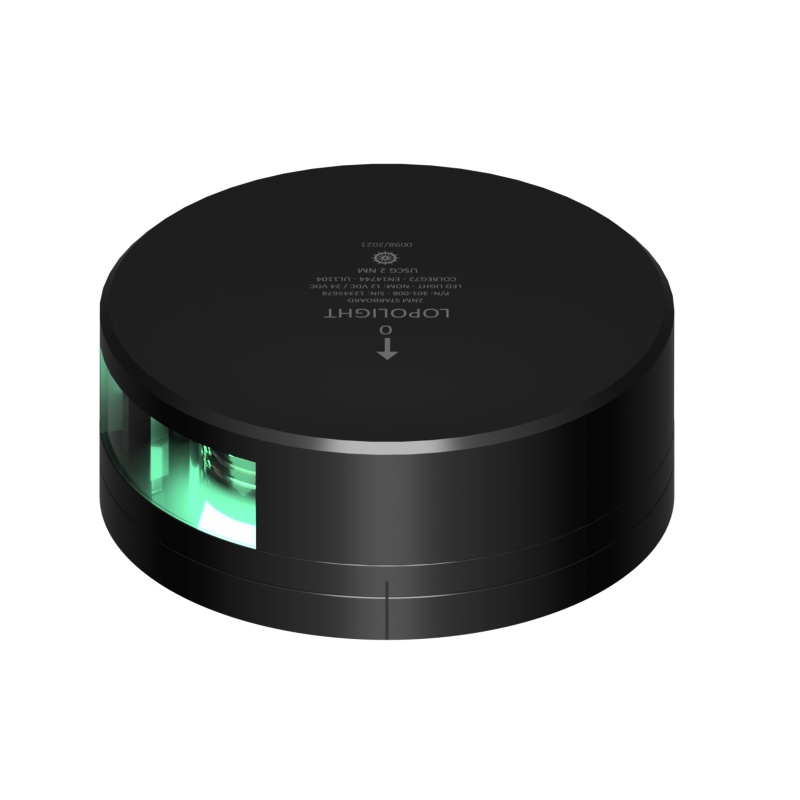

The Lopolight 2NM Starboard Sidelight in horizontal mount configuration is designed for vessels under 20 metres, providing a precise 112.5° green beam visible to 2 nautical miles. This model is ideal for deck, coaming, or cabin roof installations where a horizontal footprint is preferred.

Crafted from anodised aluminium, the light is available in Silver or Black finishes to match the vessel’s design. Rated IP68, the sealed housing and epoxy-filled electronics deliver long-term durability against saltwater, vibration, and UV exposure.

The 2.5-metre marine-grade cable provides a standard-length connection suitable for most installations.

Key Features:

  • Suitable for vessels under 20 metres
  • 112.5° green beam, visible to 2NM
  • Horizontal mount – ideal for deck, coaming, or cabin installation
  • Available in Silver or Black anodised aluminium housing
  • IP68 sealed with epoxy-filled electronics for marine durability
  • Supplied with 2.5m marine-grade cable
  • Low power draw – ~2 W at 10–32 V
  • Fully compliant with COLREG72, EN14744, and USCG standards
  • Alternative version available with 6m cable connection

Especificaciones

Electrics
Tensión de funcionamiento (V) 10-32
Tipo de alimentación dc.
Consumo de corriente (mA @ 12VCC) 110
Consumo de corriente (mA @ 24VCC) 60
Potencia (W) 1.4
Homologado según COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Intensidad luminosa (cd) >5.4
Temperatura de funcionamiento -25°C to 55°C
Visibilidad (NM) 2
Resistencia al agua IP68
Boat
Eslora (m) Under 12M o 12-20M o 20-50M
Dimensions
Dimensiones (mm) Ø92,5mm x 46mm
Rigging
Calibre de cable de alimentación Mín 0.5mm2 AWG22
Material
Material Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane o Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Undefined
Color* Black o Silver
Compatibility
Conexión 2.5m cable
Weight
Peso (g) 570
Garantía (años) 5 year limited warranty
