KA-KBRA105-SN_Karver Drawing Snatch Block_001.PDF

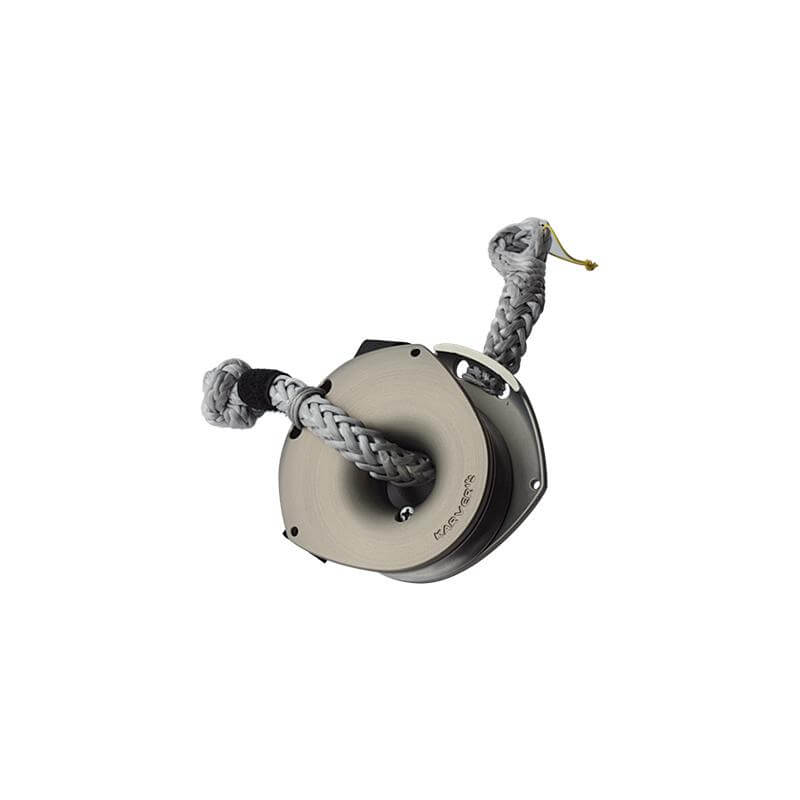

Karver KBR105 High Load Snatch Block Technical Drawing
|
|
|
|
KA-KBR_Karver Drawing Block Materials Properties_001.PDF
Karver KBR Block Materials Diagram
|
|
|
|
KA-KBRA105-SN_Karver 2D Drawing Snatch Block_001.DWG
Karver KBRA105 2D Snatch Block Technical Drawing
|
|
|
|
KA-KBRA105-SN_Karver 3D Drawing Snatch Block_001.IGS
Karver KBRA105 3D Snatch Block Technical Drawing
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 18 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 10500 |
| NBL (kg) | 21000 |
| Blocks | |
|---|---|
| Bearing type | - |
| Ratsche | Nein |
| Dimensions | |
|---|---|
| Innendurchmesser (mm) | 36 |
| Scheibe Ø (mm) | 102 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Gewicht (g) | 668 |
