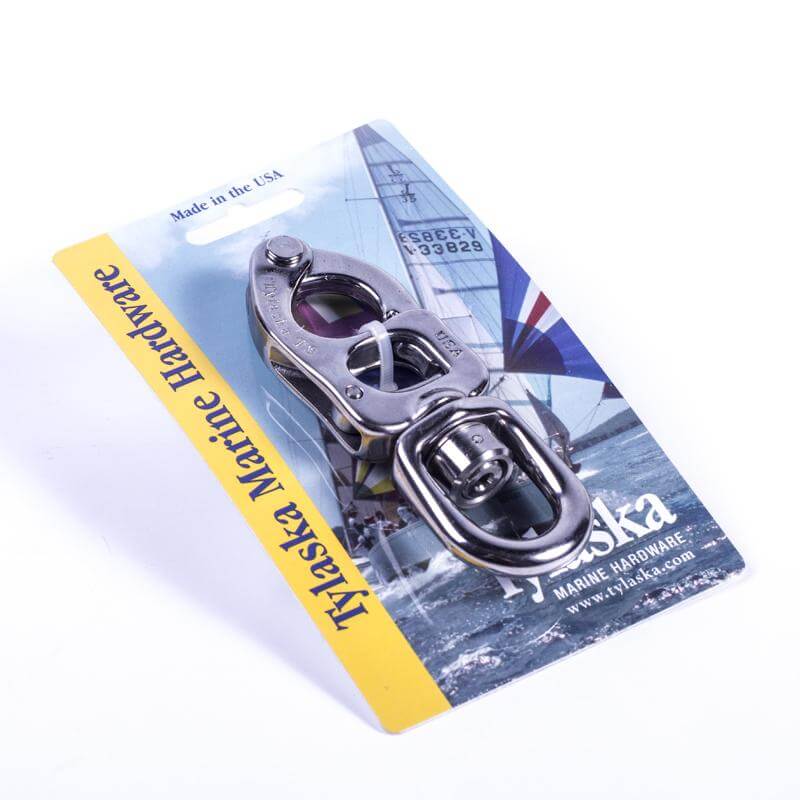

Specifications for Tylaska T8S Schnappschäkel mit Standardbügel
| Boat | |
|---|---|
| Empfohlene max. Bootsgröße (ft.) | 36 |
| Empfohlene min. Bootsgröße (ft.) | 24 |
| Style | Drehbarer Bügel (klein) |
| Load | |
| SWL (kg) | 1810 |
| NBL (kg) | 2270 |
| Dimensions | |
| A (mm) | 16 |
| B (mm) | 14.6 |
| C (mm) | 88.5 |
| Material | |
| Material | Edelstahl |
| Material Grade | 17-4PH SS |
| Undefined | |
| Farbe | Edelstahl poliert or Black Oxide or Bronze PVD |
| Weight | |
| Gewicht (g) | 99 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Tylaska T8 Snap Shackles are perfect for applications requiring high strength and low weight. They have a SWL of 1,818kg and weigh only 97g in the standard bail configuration. Ideal for the 24 to 36 foot sailboat. Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Boat | |
|---|---|
| Empfohlene max. Bootsgröße (ft.) | 36 |
| Empfohlene min. Bootsgröße (ft.) | 24 |
| Style | Drehbarer Bügel (klein) |
| Load | |
|---|---|
| SWL (kg) | 1810 |
| NBL (kg) | 2270 |
| Dimensions | |
|---|---|
| A (mm) | 16 |
| B (mm) | 14.6 |
| C (mm) | 88.5 |
| Material | |
|---|---|
| Material | Edelstahl |
| Material Grade | 17-4PH SS |
| Undefined | |
|---|---|
| Farbe | Edelstahl poliert oder Black Oxide oder Bronze PVD |
| Weight | |
|---|---|
| Gewicht (g) | 99 |
