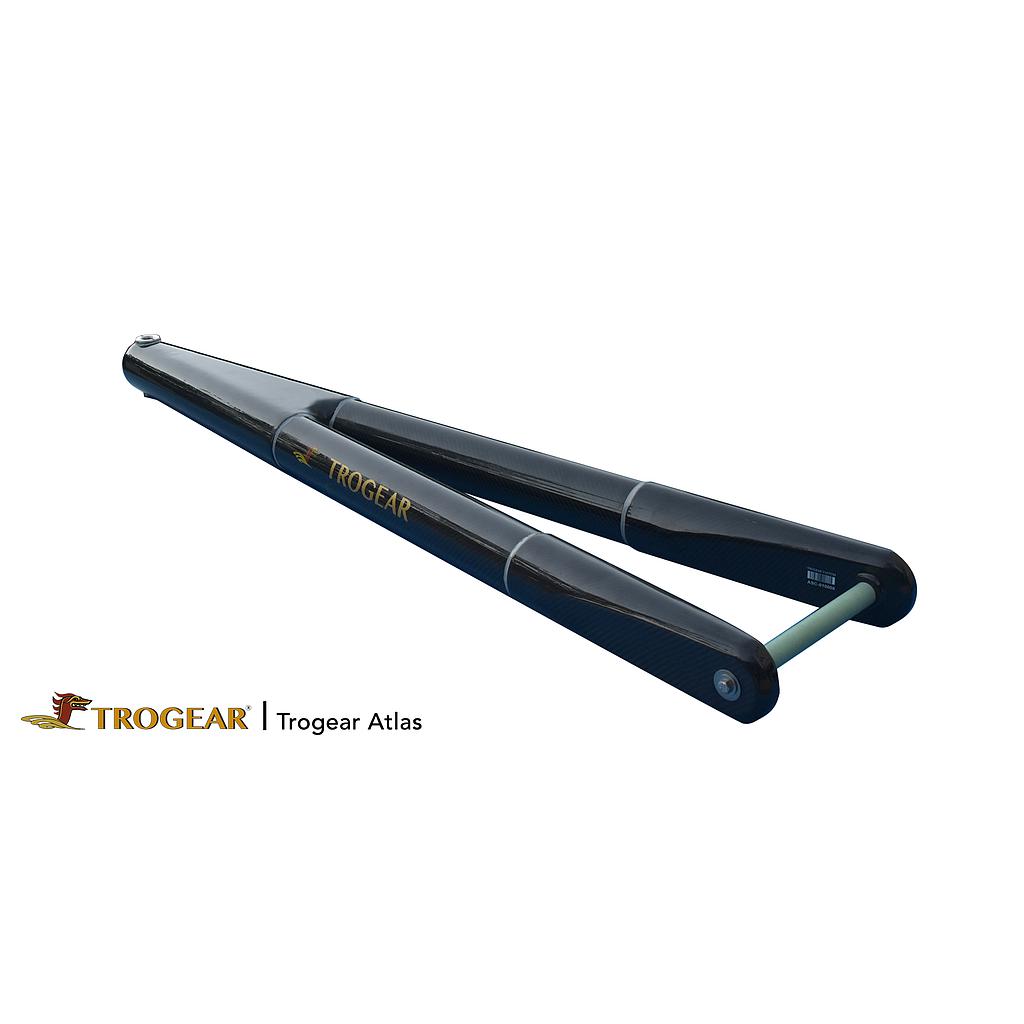

The Trogear ATLAS is especially suited for yachts ~50ft. (up to 15.25m)
Base model includes parts needed for Through Hull install:
- G10 Fiberglass hinge tube
- Hinge shaft: Titanium w/bolts or quick release pin
- Marine grade bolts and washers
- Does not include parts for the bobstay rigging.
3-year warranty.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Boat | |
|---|---|
| Empfohlene max. Bootsgröße (ft.) | 50 |
| Style | Faltbar |
| Load | |
|---|---|
| SWL (kg) | 2000 |
| NBL (kg) | 4000 |
| Dimensions | |
|---|---|
| Aussendurchmesser (mm) | 86 |
| Gesamtlänge (mm) | 1369 |
| Material | |
|---|---|
| Material | Karbon |
| Weight | |
|---|---|
| Gewicht (g) | 3600 |
| Garantie (Jahren) | 3 |
