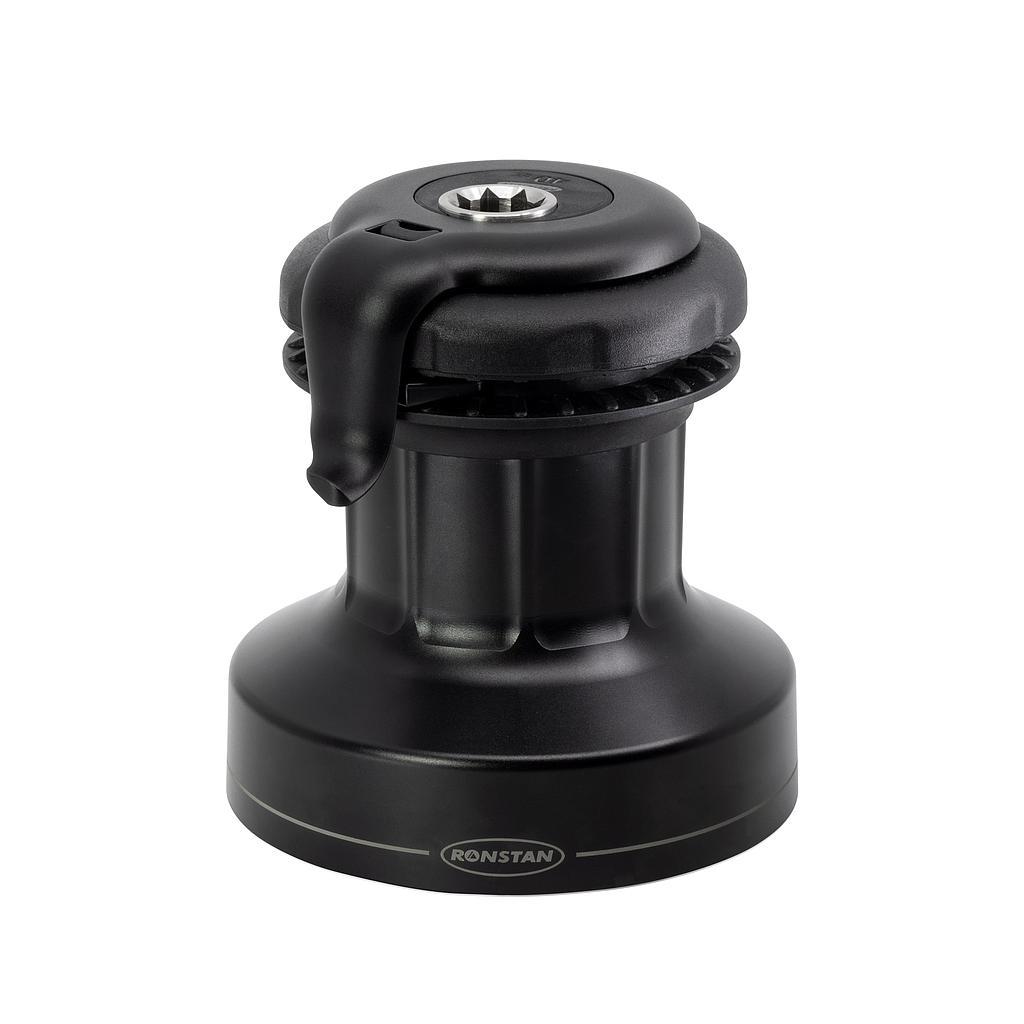

Specifications for Ronstan 40QT Orbit Winsch - 2-Gang, QuickTrim
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 7 |
| Boat | |
| Style | Self-Tailing |
| Load | |
| SWL (kg) | 850 |
| Dimensions | |
| Basis Ø (mm) | 151 |
| Trommel Ø (mm) | 86 |
| Höhe (mm) | 166 |
| Leinen Einlaufhöhe (mm) | 57 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 1.4 |
| Getriebuntersetzung 2. Gang (X : 1) | 6.8 |
| Gänge (manuell) | 2-Gang |
| Kraftuntersetzung 1. Gang (X : 1) | 8 |
| Kraftuntersetzung 2. Gang (X : 1) | 40 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Größe | 40 |
| Weight | |
| Gewicht (g) | 3100 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
