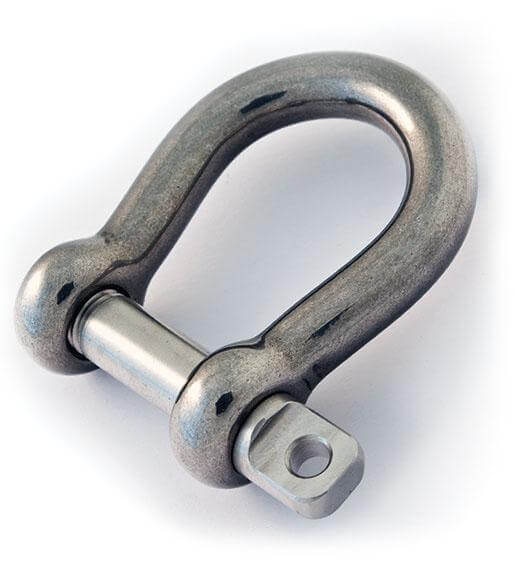

Specifications for Petersen 12mm Bügelschäkel
| Boat | |
|---|---|
| Load | |
| NBL (kg) | 6000 |
| Dimensions | |
| B (mm) | 12,7 |
| J (mm) | 26 |
| L (mm) | 52 |
| P (mm) | 12,7 |
| W (mm) | 38 |
| Pin Ø (mm) | 12,7 |
| Material | |
| Material | Edelstahl |
| Material Grade | AISI 316L |
| Weight | |
| Gewicht (g) | 270 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
