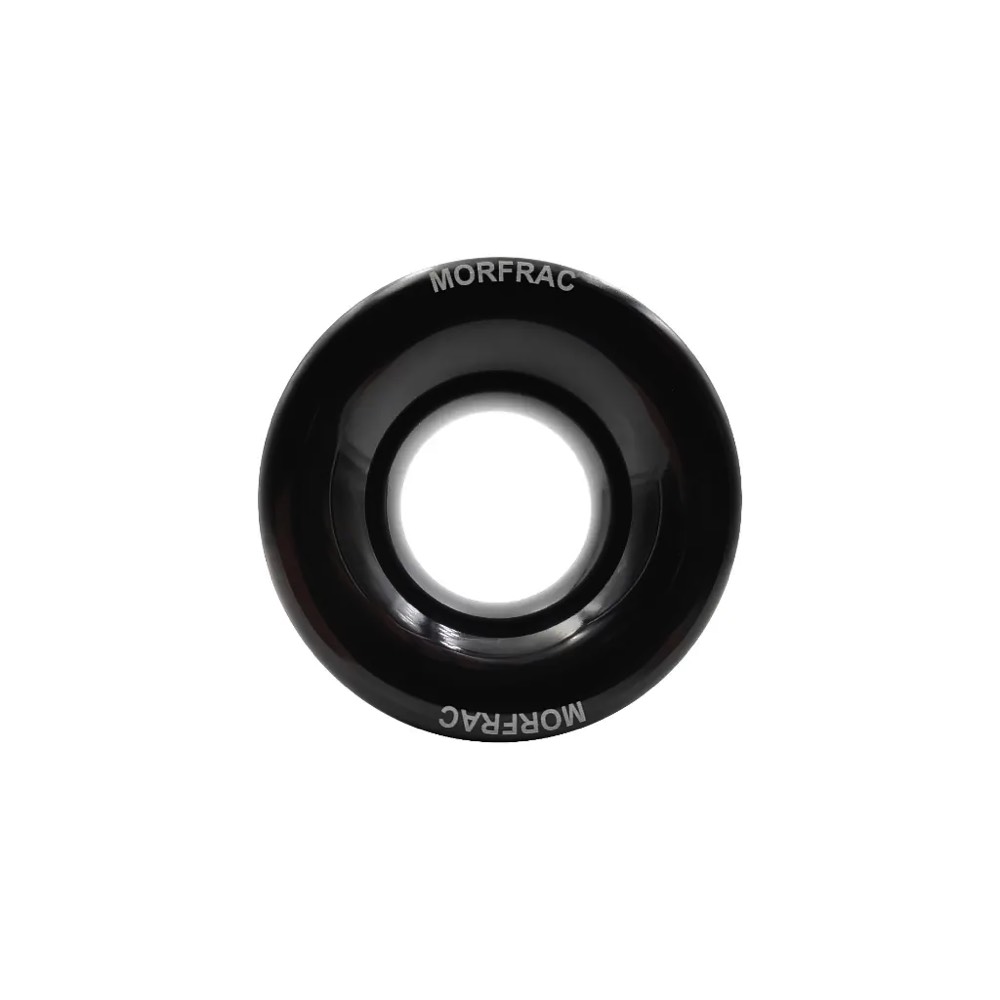

    MORFRAC morfring Ø 20 mm – Low Friction Ring


    Reliable performance in a refined package. The MORFRAC morfring Ø 20 mm offers a compact, high-strength solution for lightweight rigging systems, built around Morfrac’s signature hard anodising process. This premium finish ensures a glass-smooth surface that significantly reduces line friction and wear, even under load.

    Designed for use with smaller control lines and moderate load-bearing applications, it’s an ideal addition to any dinghy, sportsboat, or inboard cascade setup where weight, space, and durability matter.

    Key Features:

    • Premium Hard Anodised Finish: Delivers ultra-smooth line handling and excellent resistance to abrasion and saltwater corrosion.
    • Low Profile and Lightweight: At just 20 mm outer diameter, it fits easily into tight spaces while contributing virtually no weight to your rigging.
    • Rope Compatibility: Designed for use with lines up to 5mm in diameter.
    • Safe Working Load: Rated to 410 kg, making it ideal for vang systems, tweakers, purchase cascades, or lightweight sheeting solutions.
    • Simple and Versatile: A compact, cost-effective alternative to pulley blocks for static and semi-static line deflection or redirection.
    • Marine-Grade Durability: Hard anodised aluminium construction ensures long-term resistance to wear, UV, and corrosion.

    The morfing Ø 20 mm brings high-end friction performance to small-scale rigging, offering the ultimate in simplicity, reliability, and lightweight design for performance-focused sailors.

    Spezifikationen

    Ropes
    Empfohlener max. Leinendurchmesser (mm) 5
    Boat
    Load
    SWL (kg) 410
    NBL (kg) 820
    Dimensions
    A (mm) 20
    B (mm) 8
    C (mm) 8
    Innendurchmesser (mm) 8
    Max. Außendurchmesser (mm) 5
    Aussendurchmesser (mm) 20
    Gesamtbreite (mm) 8
    Weight
    Gewicht (g) 2
