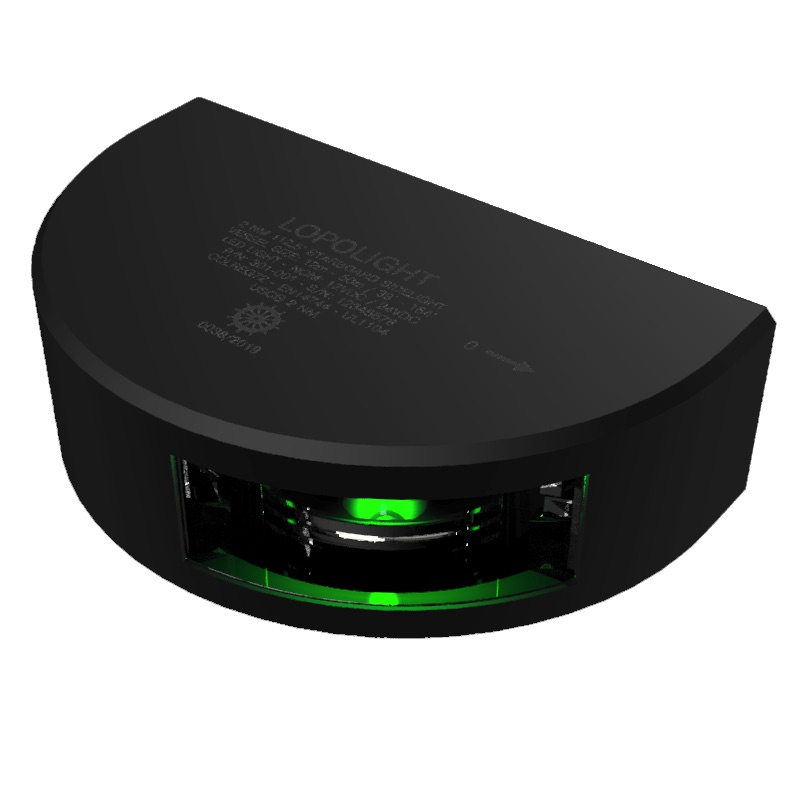

    Lopolight 2NM 112.5° Starboard Sidelight – Vertical Mount, 6m Cable (Silver or Black Anodised)

    [For vessels under 20m – LED navigation light]


    The Lopolight 2NM Starboard Sidelight with 6-metre cable is a durable LED navigation light designed for vessels under 20 metres. Emitting a precise 112.5° green beam visible to 2 nautical miles, it ensures clear and compliant visibility for safe night navigation.

    This vertical-mount light is engineered from anodised aluminium and is available in Silver or Black finishes, providing both corrosion resistance and a sleek profile. The compact form makes it ideal for mounting on topsides, pulpits, or other tight spaces. Rated IP68, its epoxy-sealed electronics protect against water ingress, vibration, and UV damage.

    The 6-metre marine-grade cable allows flexible routing for taller hulls, complex wiring paths, or retrofit installations.

    Key Features:

    • Suitable for vessels under 20 metres
    • 112.5° green beam, visible to 2NM
    • Vertical mount – compact and space-efficient
    • Available in Silver or Black anodised aluminium housing
    • IP68 sealed for marine durability
    • Supplied with 6m marine-grade cable for extended installation reach
    • Low power draw – ~2 W at 10–32 V
    • Fully compliant with COLREG72, EN14744, and USCG standards
    • Alternative version available with 2.5m cable connection
    • Installation guide

    Spezifikationen

    Electrics
    Spannung unter Betrieb 10-32
    Power supply type dc.
    Current draw (mA @ 12VDC) 110
    Current draw (mA @ 24VDC) 60
    Leistung (W) 1.4
    Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
    Luminous Intensity (cd) >5.4
    Operating temperature -25°C to 55°C
    Sichtweite (NM) 2
    Wasserdichtigkeit IP68
    Boat
    Boat size (m) Under 12M oder 12-20M oder 20-50M
    Dimensions
    Dimensions (mm) 92,5 x 28 x 49,7
    Rigging
    Feed wire gauge Min 0.5mm2 AWG22
    Material
    Material Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane oder Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
    Undefined
    Farbe Schwarz oder Silber
    Compatibility
    Connection 6m cable
    Weight
    Gewicht (g) 630
    Garantie (Jahren) 5 year limited warranty
