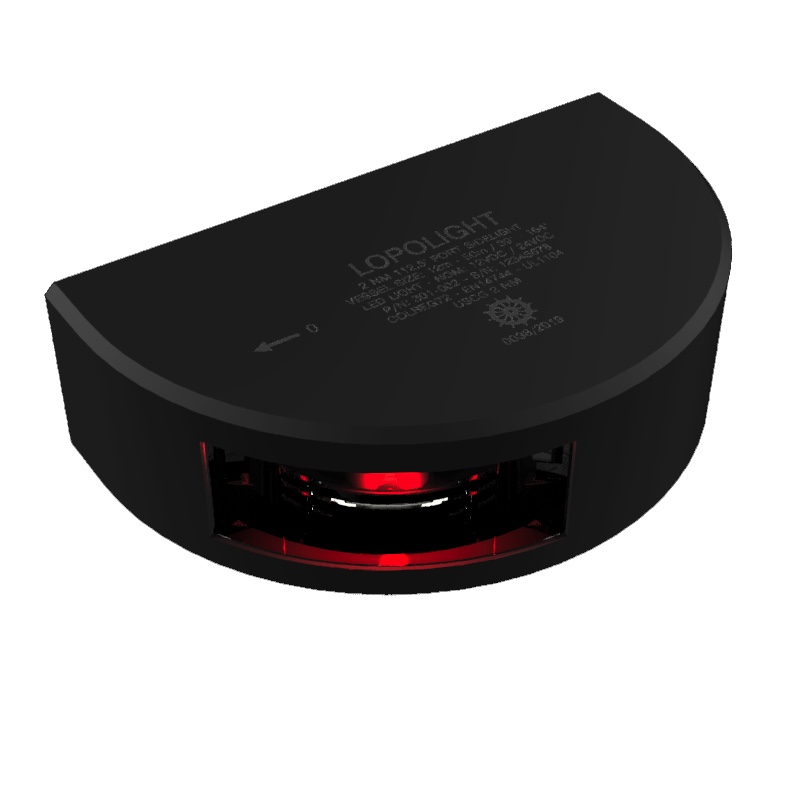

    Lopolight 2NM 112.5° Port Sidelight – Vertical Mount, 6m Cable (Silver or Black Anodised)

    [For vessels under 20m – LED navigation light]


    The Lopolight 2NM Port Sidelight with 6-metre cable is designed for vessels under 20 metres requiring extended wiring runs or taller superstructures. Emitting a precise 112.5° red beam visible to 2 nautical miles, it delivers consistent, compliant portside visibility for safe navigation.

    Machined from anodised aluminium, this model is offered in Silver or Black finishes to match vessel aesthetics. The vertical-mount design is compact, making it ideal for installation on hull sides, pulpits, or narrow deck locations. Rated IP68, with epoxy-sealed electronics, the unit is built for long-term resistance to saltwater, vibration, and UV exposure.

    The 6-metre marine-grade cable provides installation flexibility for longer routing paths or retrofit projects.

    Key Features:

    • Suitable for vessels under 20 metres
    • 112.5° red beam, visible to 2NM
    • Vertical mount – compact and space-efficient
    • Available in Silver or Black anodised aluminium housing
    • IP68 sealed with epoxy-filled electronics for marine durability
    • Supplied with 6m marine-grade cable for extended routing
    • Low power draw – ~2 W at 10–32 V
    • Fully compliant with COLREG72, EN14744, and USCG standards
    • Alternative version available with 2.5m cable connection

    Spezifikationen

    Electrics
    Spannung unter Betrieb 10-32
    Power supply type dc.
    Current draw (mA @ 12VDC) 90
    Current draw (mA @ 24VDC) 50
    Leistung (W) 1,2
    Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
    Luminous Intensity (cd) >5.4
    Operating temperature -25°C to 55°C
    Sichtweite (NM) 2
    Wasserdichtigkeit IP68
    Boat
    Boat size (m) Under 12M oder 12-20M oder 20-50M
    Dimensions
    Dimensions (mm) 92,5 x 28 x 49,7
    Rigging
    Feed wire gauge Min 0.5mm2 AWG22
    Material
    Material Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane oder Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
    Undefined
    Farbe Schwarz oder Silber
    Compatibility
    Connection 6m cable
    Weight
    Gewicht (g) 630
    Garantie (Jahren) 5 year limited warranty
