    Lopolight 2NM 112.5° Port Sidelight – Vertical Mount, 2.5m Cable (Silver or Black Anodised)

    [For vessels under 20m – LED navigation light]

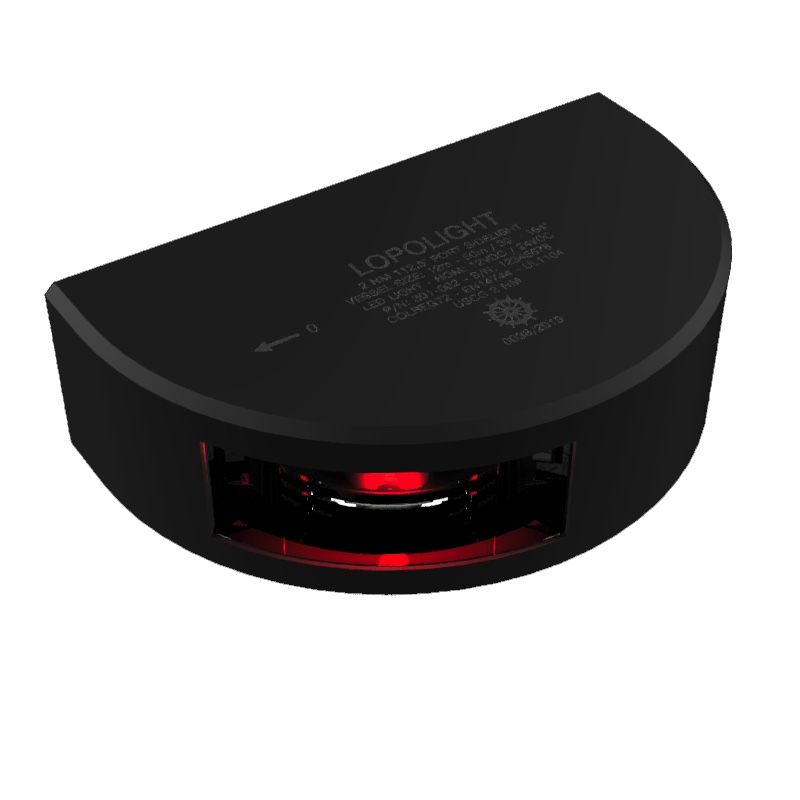

    The Lopolight 2NM Port Sidelight is a precision-engineered LED navigation light for vessels under 20 metres. Emitting a crisp 112.5° red beam visible to 2 nautical miles, it delivers reliable, compliant portside visibility for safe navigation.

    Constructed from anodised aluminium, this model is available in Silver or Black finishes. Its compact vertical-mount design makes it ideal for installation on hull sides, pulpits, or confined deck areas. Rated IP68, the epoxy-sealed electronics ensure long-lasting resistance to saltwater, vibration, and UV exposure.

    The 2.5-metre marine-grade cable provides straightforward installation for standard routing distances.

    Key Features:

    • Suitable for vessels under 20 metres
    • 112.5° red beam, visible to 2NM
    • Vertical mount – ideal for hull or pulpit installations
    • Available in Silver or Black anodised aluminium housing
    • IP68 sealed with epoxy-filled electronics for marine durability
    • Supplied with 2.5m marine-grade cable
    • Low power draw – ~2 W at 10–32 V
    • Fully compliant with COLREG72, EN14744, and USCG standards
    • Alternative version available with 6m cable connection
    • Installation guide

    Spezifikationen

    Electrics
    Spannung unter Betrieb 10-32
    Power supply type dc.
    Current draw (mA @ 12VDC) 90
    Current draw (mA @ 24VDC) 50
    Leistung (W) 1,2
    Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
    Luminous Intensity (cd) >5.4
    Operating temperature -25°C to 55°C
    Sichtweite (NM) 2
    Wasserdichtigkeit IP68
    Boat
    Boat size (m) Unter 12 m oder 12–20 m oder 20–50 m
    Dimensions
    Dimensions (mm) 92,5 x 28 x 49,7
    Rigging
    Feed wire gauge Min 0.5mm2 AWG22
    Material
    Material silber eloxiertes Aluminium 25µ, PMMA-Linse, A4-Edelstahlschrauben, Epoxidharz, Polyurethan
    Undefined
    Farbe Schwarz oder Silber
    Compatibility
    Connection 2,5 m Kabel
    Weight
    Gewicht (g) 380
    Garantie (Jahren) 5 Jahre eingeschränkte Garantie
