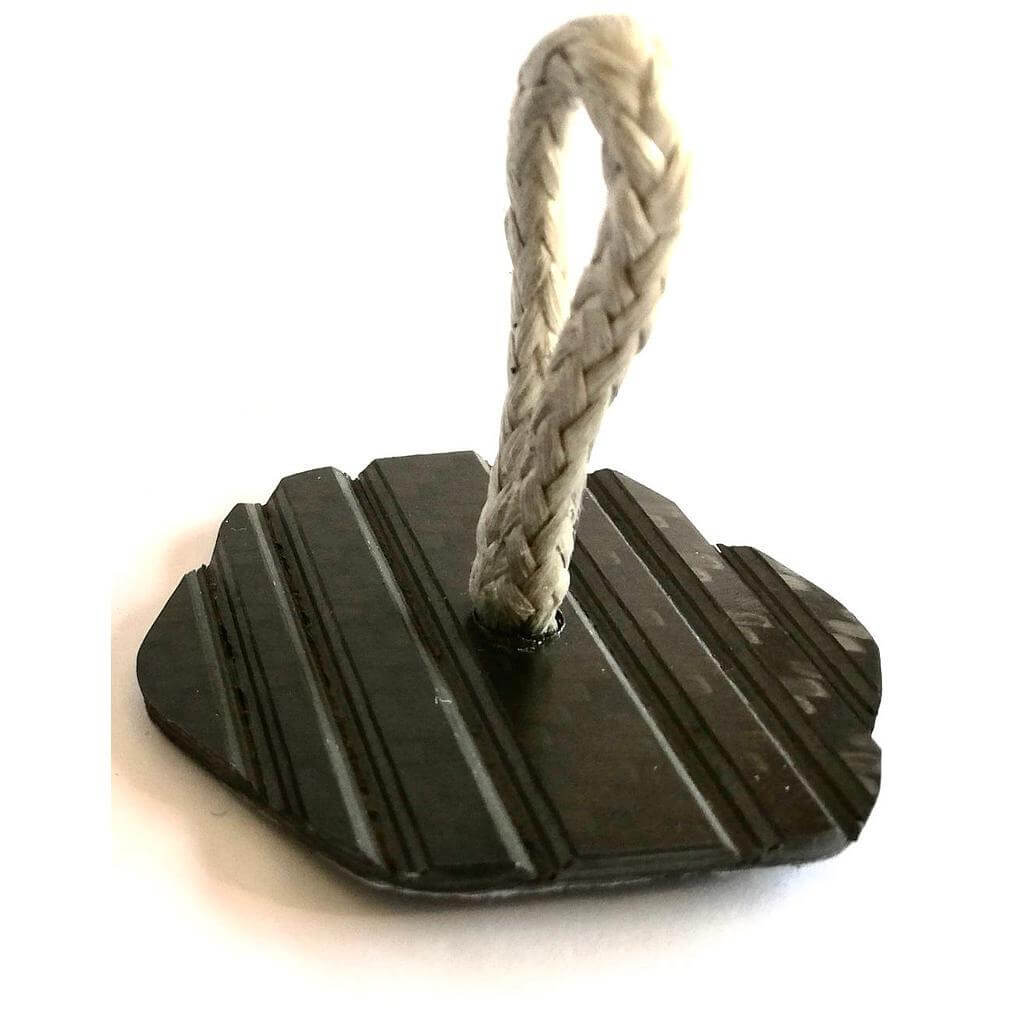

Specifications for LOOP Products Flexi Stick-on Padeye 4x40mm
| Ropes | |
|---|---|
| Tauwerk Ø (mm) | 4 |
| Boat | |
| Style | Soft |
| Load | |
| SWL (kg) | 150 |
| NBL (kg) | 350 |
| Dimensions | |
| A (mm) | 49 |
| B (mm) | 53 |
| Base thickness (mm) | 3,5 |
| Loop length (mm) | 40 |
| Weight | |
| Gewicht (g) | 10 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
This is a new take on the 'traditional' stick on padeye featuring a flexible base for mounting on curved surfaces. The base plate is constructed from layers of carbon and Dyneema providing stiffness in one direction and flexibility in the other. The grooves in the carbon allow the base to be formed to the required curvature.
