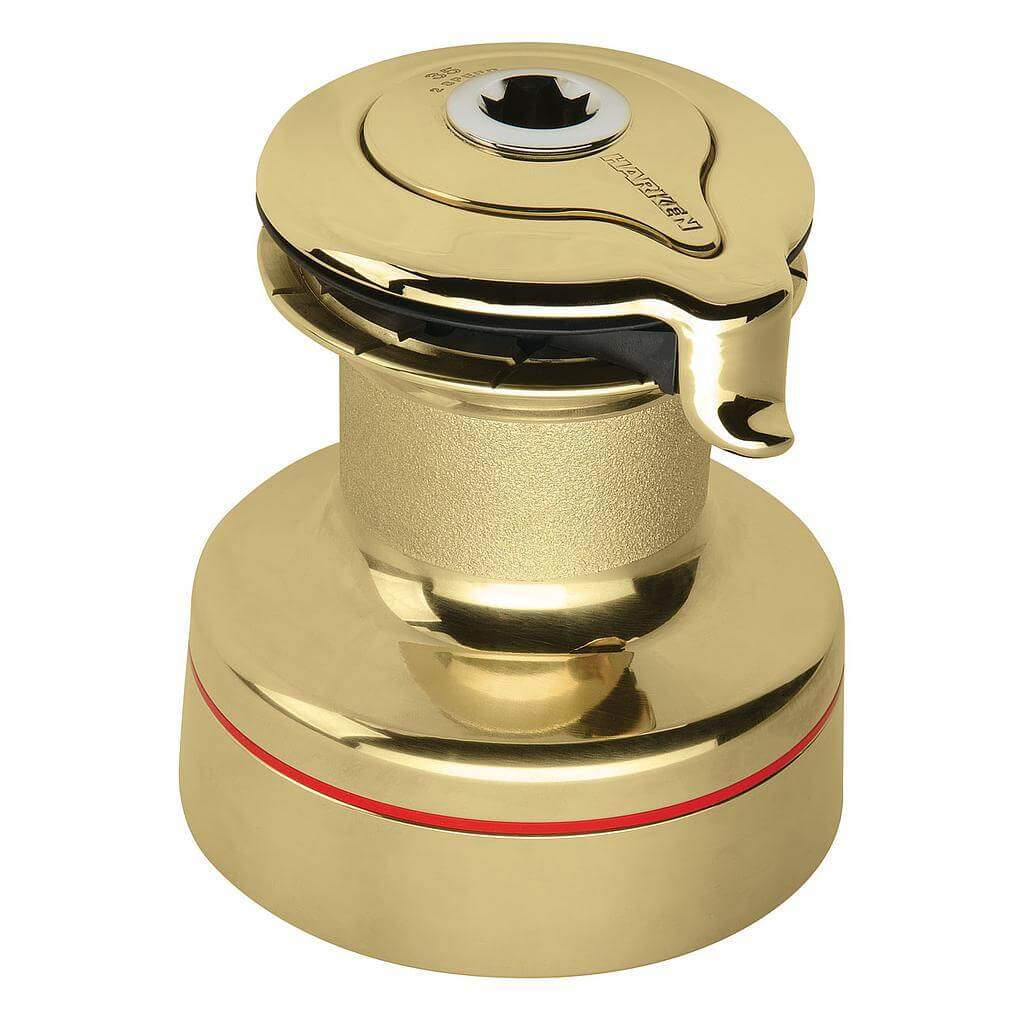

Specifications for Harken 35 2-Gang S/T Radial Bronze Winsch
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Load | |
| SWL (kg) | 650 |
| Dimensions | |
| A (mm) | 80 |
| B (mm) | 149 |
| C (mm) | 170 |
| D (mm) | 79 |
| Basis Ø (mm) | 149 |
| Trommel Ø (mm) | 80 |
| Höhe (mm) | 170 |
| Leinen Einlaufhöhe (mm) | 79 |
| Größe | 35 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 2,13 |
| Getriebuntersetzung 2. Gang (X : 1) | 5,65 |
| Gänge (manuell) | 2-Gang |
| Kraftuntersetzung 1. Gang (X : 1) | 13,5 |
| Kraftuntersetzung 2. Gang (X : 1) | 35,9 |
| Material | |
| Material | Bronze |
| Weight | |
| Gewicht (g) | 5500 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
