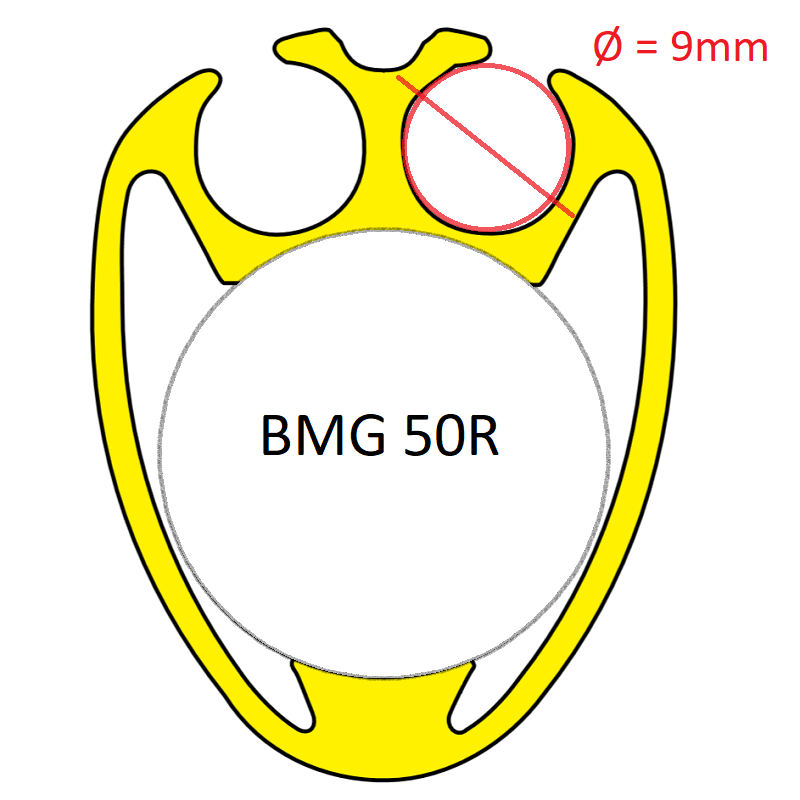

Specifications for Bamar Profilsektion BMG50R - 1.5m
| Boat | |
|---|---|
| Dimensions | |
| A (mm) | 38 |
| B (mm) | 50 |
| C (mm) | 30 |
| D (mm) | 9 |
| E (mm) | 3 |
| Max. Drahtdurchmesser (mm) | 14 |
| Furling | |
| Extrusion Länge (mm) | 1500 |
| Extrusion Ø (mm) | 38 |
| Extrusion Gewicht (g/m) | 1320 |
| Luff groove (Single/Double) | Doppelte Vorlieksnut |
| Luff rope Ø (mm) | 5 |
| Rigging | |
| Max. Rod dash Größe | -30 |
| Weight | |
| Gewicht (g) | 1980 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
