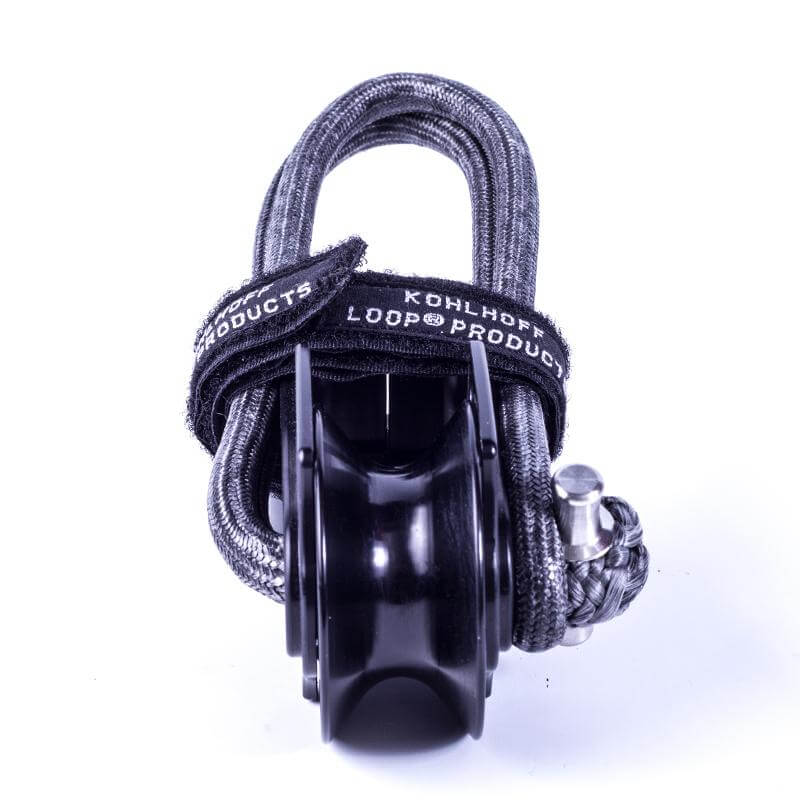

KOHLHOFF LOOP® Blocks are compact and lightweight multi-purpose snatch blocks with a Dyneema® loop fastening and aluminium sheave. The short standard loop ensures minimum damage to deck or superstructure and is always remains easy to unfasten, even after full loading. The loop is covered with an extra Dyneema® braid to improve abrasion resistance, is terminated in a dogbone and a velcro strap for security. The ball bearing block has a two stage bearing: at lower loads the ball bearing minimises friction and at higher loads the plain bearing comes into effect.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 16 |
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 50 |
| Dimensione barca consigliata - Min (ft) | 40 |
| Load | |
|---|---|
| SWL (kg) | 3000 |
| NBL (kg) | 6000 |
| Blocks | |
|---|---|
| Tipo di cuscinetti | Ball bearing |
| Cricchetto | No |
| Dimensions | |
|---|---|
| Ø puleggia (mm) | 60 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Peso (g) | 243 |
