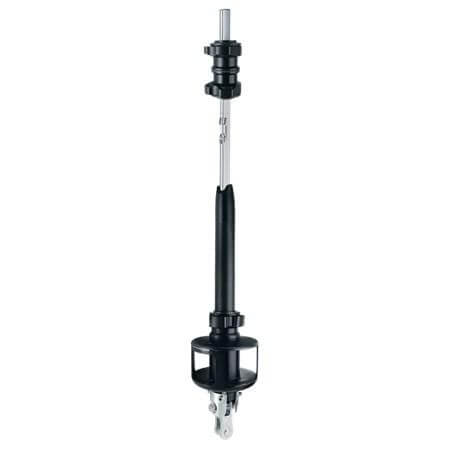

Specifications for Harken MKIV Unit 4 Rollreffanlage
| Boat | |
|---|---|
| Empfohlene max. Bootsgröße (ft.) | 80 |
| Empfohlene min. Bootsgröße (ft.) | 65 |
| Dimensions | |
| A (mm) | 227 |
| D (mm) | 280 |
| E (mm) | 130 |
| F (mm) | 1405 |
| H (mm) | 509 |
| I (mm) | 220 |
| J (mm) | 44 |
| K (mm) | 47 |
| Trommel Ø (mm) | 280 |
| Pin Ø (mm) | 28,6 |
| Max. Drahtdurchmesser (mm) | 16 |
| Furling | |
| Extrusion Länge (mm) | 2130 |
| Extrusion Ø (mm) | 44 |
| Extrusion Referenz | 7414.30 |
| Extrusion Gewicht (g/m) | 1174 |
| Max. Vorstaglänge (mm) | 27150 |
| Standard Vorstaglänge (mm) | 22880 |
| Luff groove (Single/Double) | Doppelte Vorlieksnut |
| Luff rope Ø (mm) | 5 |
| Rigging | |
| Max. Rod dash Größe | -48 |
| Rod Ø Max (mm) | 14,3 |
| Weight | |
| Gewicht (g) | 39009 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Harken MKIV, MKIC Ocean & MKIV Underdeck Range.pdf
Harken Catalogue for the MKIV, MKIV Ocean and MKIV Underdeck Ranges.
|
|
|
|
MKIV Unit 3:4_EN.pdf
English Jib Reefing and Furling Installation Manual for H-7413.10 (Unit 3), H-7414.10 (Unit 4)
|
|
|
|
Harken_MKIV_JibFurler_catalogue_2020_EN.pdf
|
