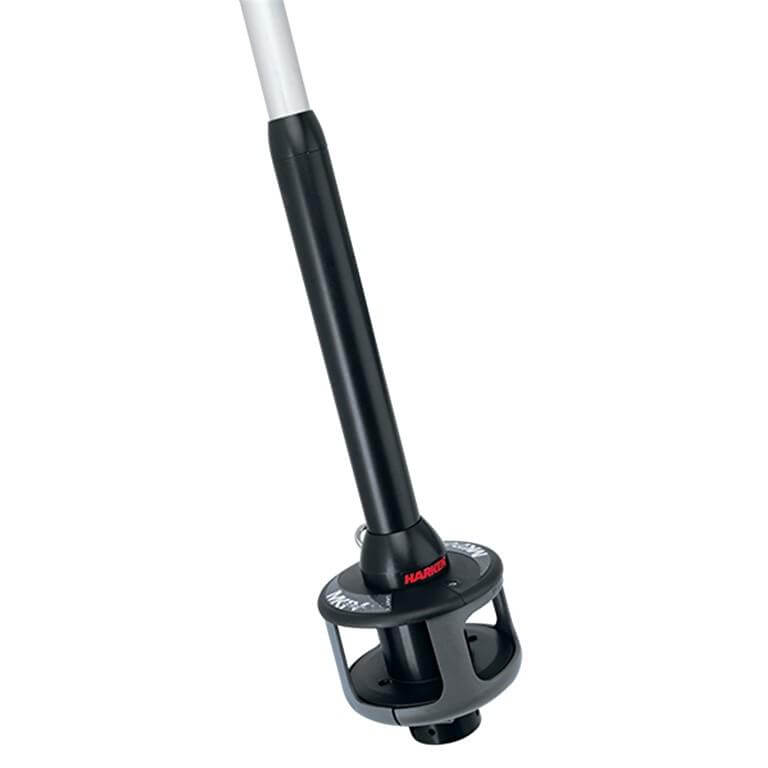

Specifications for Harken MKIV Ocean Unit 2 Rollreffanlage
| Boat | |
|---|---|
| Empfohlene max. Bootsgröße (ft.) | 46 |
| Empfohlene min. Bootsgröße (ft.) | 35 |
| Dimensions | |
| A (mm) | 143 |
| B (mm) | 231 |
| C (mm) | 66 |
| D (mm) | 208 |
| E (mm) | 97 |
| F (mm) | 1187 - 1314 |
| G (mm) | 306 - 384 |
| H (mm) | 276 - 348 |
| I (mm) | 85 - 164 |
| J (mm) | 44 |
| Trommel Ø (mm) | 208 |
| Pin Ø (mm) | 19,1 |
| Max. Drahtdurchmesser (mm) | 10 |
| Furling | |
| Extrusion Länge (mm) | 2130 |
| Extrusion Ø (mm) | 44 |
| Extrusion Referenz | 7512.30 |
| Max. Vorstaglänge (mm) | 20510 |
| Standard Vorstaglänge (mm) | 16120 |
| Luff groove (Single/Double) | Einfache Vorlieksnut |
| Luff rope Ø (mm) | 5 |
| Rigging | |
| Max. Rod dash Größe | -22 |
| Rod Ø Max (mm) | 9.53 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
