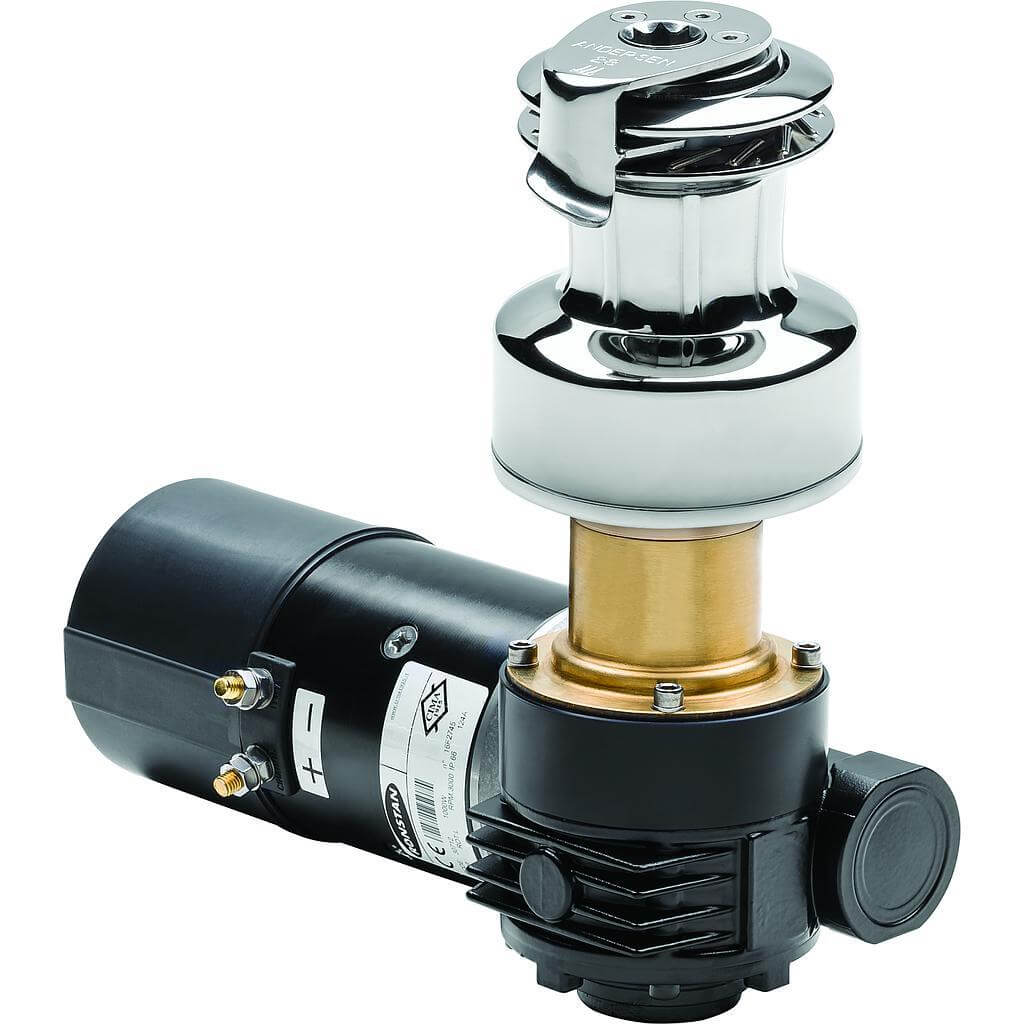

Andersen 28 1-Gang Elektro (Horizontal) 24V Edelstahl E1 Winsch (2-Gang Manuell)
MPN:
N/A
Marke:
Andersen
Specifications for Andersen 28 1-Gang Elektro (Horizontal) 24V Edelstahl E1 Winsch (2-Gang Manuell)
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 14 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Electrics | |
| Voltage (V) | 24 Monate |
| Leistung (W) | 1000 |
| Speed (Motor) | 1-Gang |
| Boat | |
| Style | Horizontal |
| Dimensions | |
| B (mm) | 125 |
| D (mm) | 70 |
| H (mm) | 161 |
| J (mm) | 183 |
| K (mm) | 49 |
| L (mm) | 75 |
| N (mm) | 300 |
| S (mm) | 75 |
| Basis Ø (mm) | 125 |
| Trommel Ø (mm) | 70 |
| Höhe (mm) | 161 |
| Leinen Einlaufhöhe (mm) | 75 |
| Motor Depth (mm) | 183 |
| Motor Length (mm) | 300 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 1,3 |
| Getriebuntersetzung 2. Gang (X : 1) | 4 |
| Gänge (manuell) | 2-Gang |
| Line recovery per rotation - 1st gear (mm) | 169 |
| Line recovery per rotation - 2nd gear (mm) | 55 |
| Line speed - 1st gear (m/min) | 24 Monate |
| Kraftuntersetzung 1. Gang (X : 1) | 9,5 |
| Kraftuntersetzung 2. Gang (X : 1) | 28,6 |
| Pulling load - Max (kg) | 600 |
| Skirt Details | Integriert |
| Material | |
| Material | Edelstahl |
| Undefined | |
| Deckstärke max. (mm) | 49 |
| Größe | 28 |
| Weight | |
| Gewicht (g) | 18000 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 28ST v4.0 _ 28ST FS v4.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - E1 _ Compact Motor Below Deck Self Tailing Winches, Size 28 _ 34 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
