Specifications for Tylaska H8 2:1 Grillo per drizza in alluminio apribile
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 14 |
| Cima consigliata - Ø Min (mm) | 10 |
| Boat | |
| Dimensione barca consigliata - Max (ft) | 36 |
| Dimensione barca consigliata - Min (ft) | 24 |
| Load | |
| SWL (kg) | 1810 |
| NBL (kg) | 3630 |
| Dimensions | |
| A (mm) | 84.1 |
| B (mm) | 33.5 |
| C (mm) | 7.1 |
| D (mm) | 38.2 |
| E (mm) | 21.2 |
| F (mm) | 19.3 |
| G (mm) | 15 |
| H (mm) | 1 |
| I (mm) | 31.5 |
| J (mm) | 8.1 |
| Material | |
| Materiale | 17-4PH |
| Weight | |
| Peso (g) | 109 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

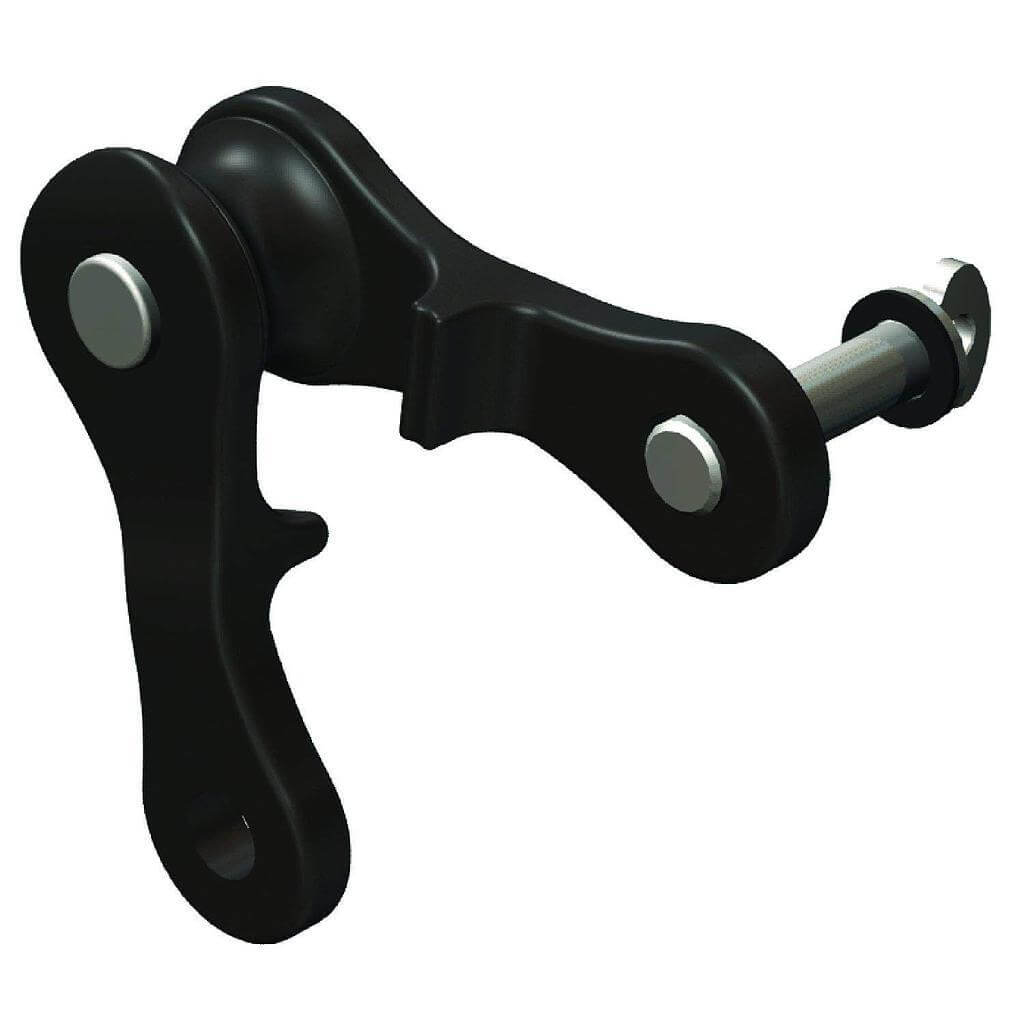

The Tylaska Split 2:1 halyard shackle offers snatch block convenience to the popular lightweight offering from Tylaska. These are ideal for quick installation and removal from existing rigging.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 14 |
| Cima consigliata - Ø Min (mm) | 10 |
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 36 |
| Dimensione barca consigliata - Min (ft) | 24 |
| Load | |
|---|---|
| SWL (kg) | 1810 |
| NBL (kg) | 3630 |
| Dimensions | |
|---|---|
| A (mm) | 84.1 |
| B (mm) | 33.5 |
| C (mm) | 7.1 |
| D (mm) | 38.2 |
| E (mm) | 21.2 |
| F (mm) | 19.3 |
| G (mm) | 15 |
| H (mm) | 1 |
| I (mm) | 31.5 |
| J (mm) | 8.1 |
| Material | |
|---|---|
| Materiale | 17-4PH |
| Weight | |
|---|---|
| Peso (g) | 109 |
