Specifications for Tylaska H8 2:1 Grillete de driza de aluminio partido
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 10 |
| Boat | |
| Eslora de barco recomendada - Máx (ft) | 36 |
| Eslora de barco recomendada - Mín (ft) | 24 |
| Load | |
| SWL (kg) | 1810 |
| NBL (kg) | 3630 |
| Dimensions | |
| A (mm) | 84.1 |
| B (mm) | 33.5 |
| C (mm) | 7.1 |
| D (mm) | 38.2 |
| E (mm) | 21.2 |
| F (mm) | 19.3 |
| G (mm) | 15 |
| H (mm) | 1 |
| I (mm) | 31.5 |
| J (mm) | 8.1 |
| Material | |
| Material | 17-4PH |
| Weight | |
| Peso (g) | 109 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

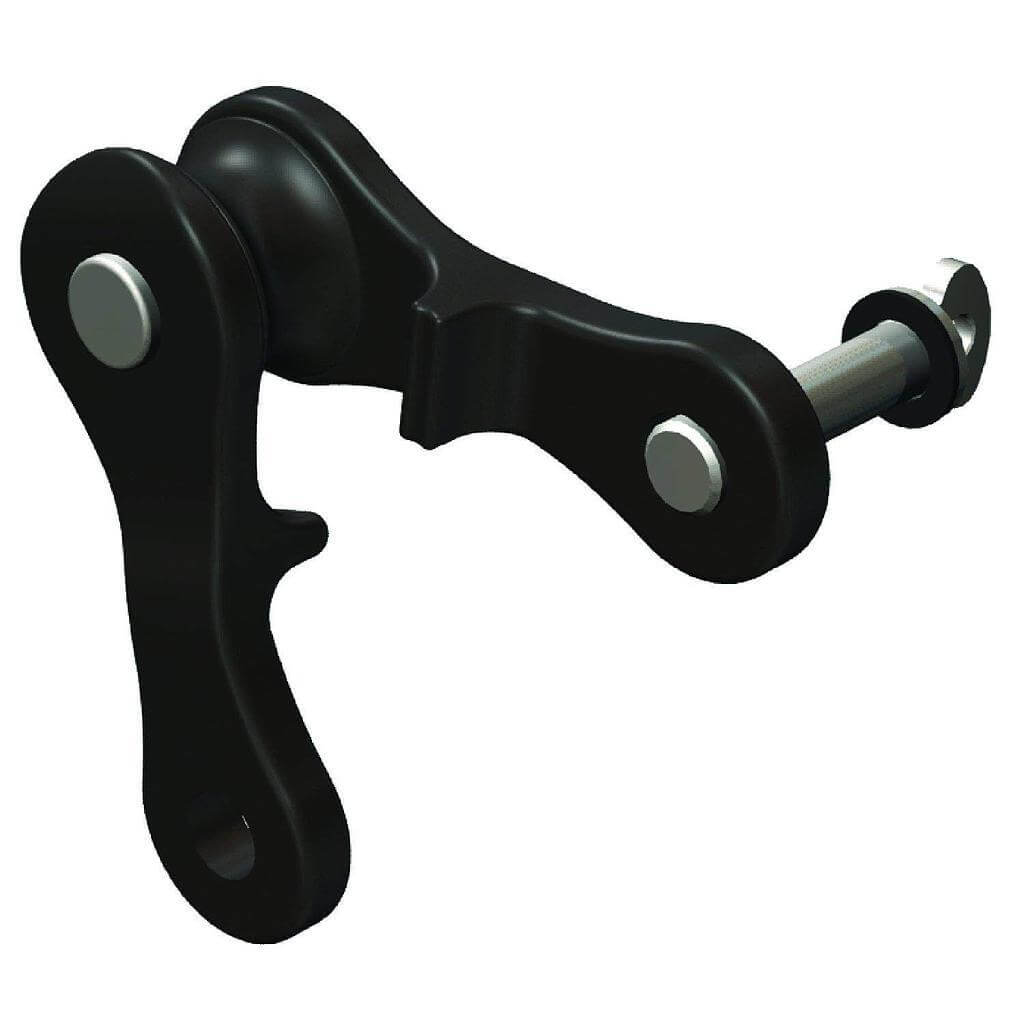

The Tylaska Split 2:1 halyard shackle offers snatch block convenience to the popular lightweight offering from Tylaska. These are ideal for quick installation and removal from existing rigging.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 10 |
| Boat | |
|---|---|
| Eslora de barco recomendada - Máx (ft) | 36 |
| Eslora de barco recomendada - Mín (ft) | 24 |
| Load | |
|---|---|
| SWL (kg) | 1810 |
| NBL (kg) | 3630 |
| Dimensions | |
|---|---|
| A (mm) | 84.1 |
| B (mm) | 33.5 |
| C (mm) | 7.1 |
| D (mm) | 38.2 |
| E (mm) | 21.2 |
| F (mm) | 19.3 |
| G (mm) | 15 |
| H (mm) | 1 |
| I (mm) | 31.5 |
| J (mm) | 8.1 |
| Material | |
|---|---|
| Material | 17-4PH |
| Weight | |
|---|---|
| Peso (g) | 109 |
