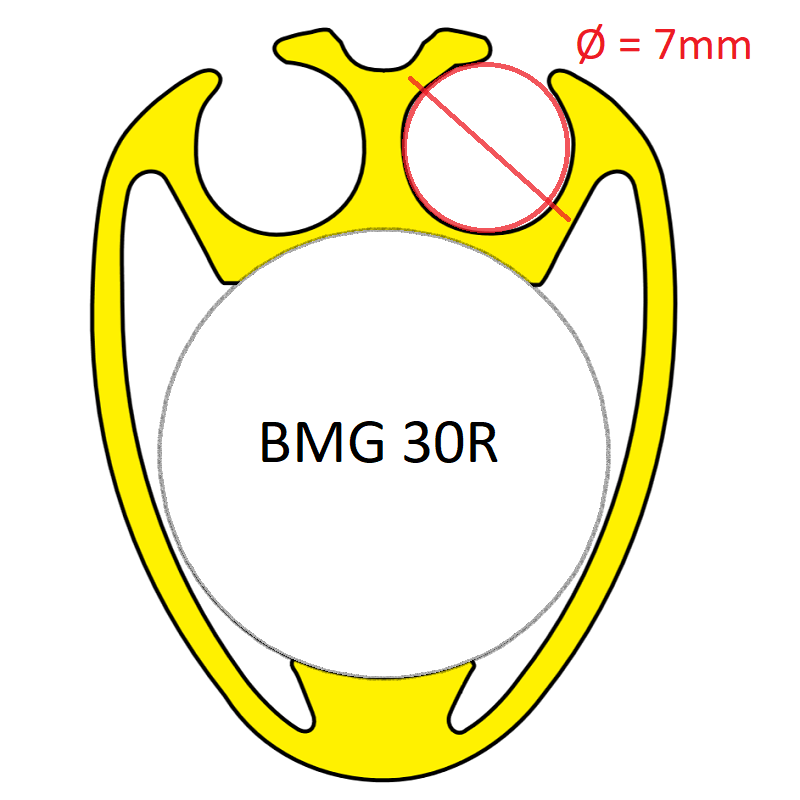

Specifications for Bamar Sezione profilo BMG30R - 1.5m
| Boat | |
|---|---|
| Dimensions | |
| A (mm) | 23 |
| B (mm) | 30 |
| C (mm) | 16 |
| D (mm) | 7 |
| E (mm) | 3.5 |
| Ø cavo metallico Max (mm) | 7 |
| Furling | |
| Lunghezza estrusione (mm) | 1500 |
| Ø estrusione (mm) | 23 |
| Peso estrusione (g/m) | 660 |
| Canaletta ralinga (Singola/Doppia) | Double |
| Ø ralinga (mm) | 5 |
| Rigging | |
| Dimensione asta DASH Max | -10 |
| Weight | |
| Peso (g) | 990 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
The Bamar BMG 30R twin groove foil sections can be fitted on C0, C0T and C1 models. They are made of durable extruded aluminium alloy and their oval section offers high aerodynamic performance. The connection between two foils sections is made through an aluminium splice piece that is inserted inside the foils to ensure a perfect alignment. Each standard furler set has foil sections included, but these 1.5m long sections can be purchased individually for additional forestay length or as spares / replacements.
