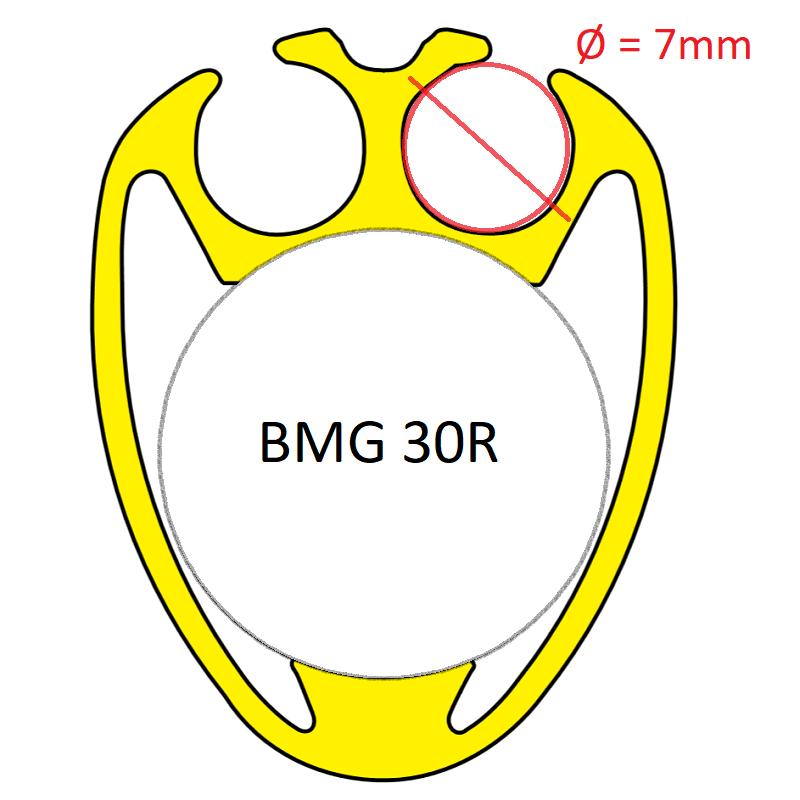

Specifications for Bamar Foil section BMG30R - 1.5m
| Boat | |
|---|---|
| Dimensions | |
| A (mm) | 23 |
| B (mm) | 30 |
| C (mm) | 16 |
| D (mm) | 7 |
| E (mm) | 3.5 |
| Wire Ø Max (mm) | 7 |
| Furling | |
| Extrusion length (mm) | 1500 |
| Extrusion Ø (mm) | 23 |
| Extrusion weight (g/m) | 660 |
| Luff groove (Single/Double) | Double |
| Luff rope Ø (mm) | 5 |
| Rigging | |
| Rod dash size Max | -10 |
| Weight | |
| Weight (g) | 990 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
