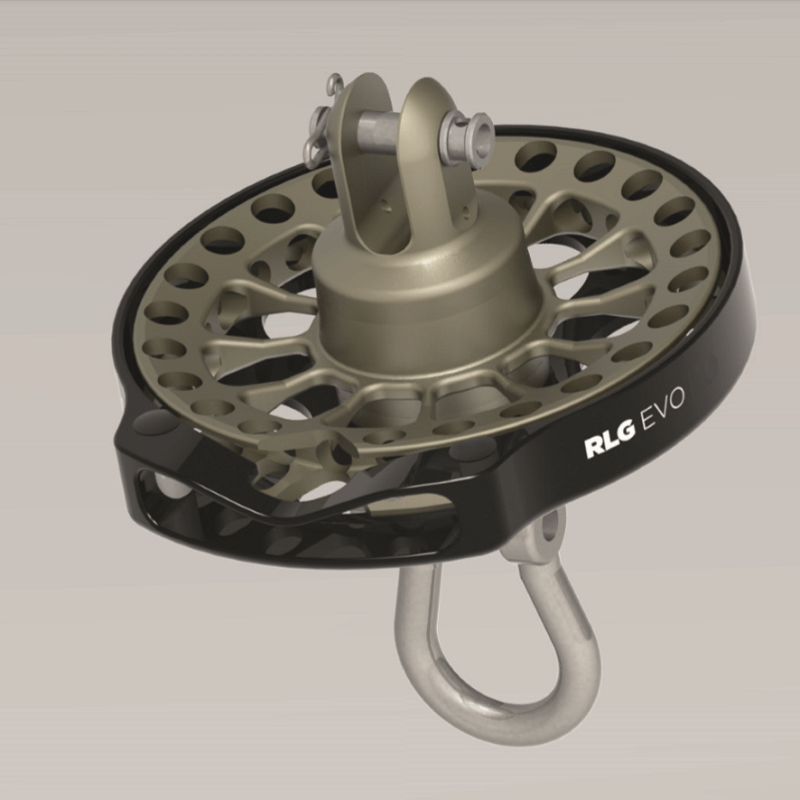

Specifications for Bamar RLG EVO 8 avvolgitore - tamburo, bottom-up
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 8 |
| Boat | |
| Dimensione barca consigliata - Max (ft) | 33 |
| Dimensione barca consigliata - Min (ft) | 26 |
| Load | |
| SWL (kg) | 2000 |
| Dimensions | |
| A (mm) | 8 |
| B (mm) | 12 |
| C (mm) | 91 |
| D (mm) | 110 |
| Ø tamburo (mm) | 110 |
| Ø perno ganascia (mm) | 8 |
| Larghezza ganascia (mm) | 13 |
| Furling | |
| Lunghezza strallo Max (mm) | 15 |
| Weight | |
| Peso (g) | 540 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 8 |
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 33 |
| Dimensione barca consigliata - Min (ft) | 26 |
| Load | |
|---|---|
| SWL (kg) | 2000 |
| Dimensions | |
|---|---|
| A (mm) | 8 |
| B (mm) | 12 |
| C (mm) | 91 |
| D (mm) | 110 |
| Ø tamburo (mm) | 110 |
| Ø perno ganascia (mm) | 8 |
| Larghezza ganascia (mm) | 13 |
| Furling | |
|---|---|
| Lunghezza strallo Max (mm) | 15 |
| Weight | |
|---|---|
| Peso (g) | 540 |
