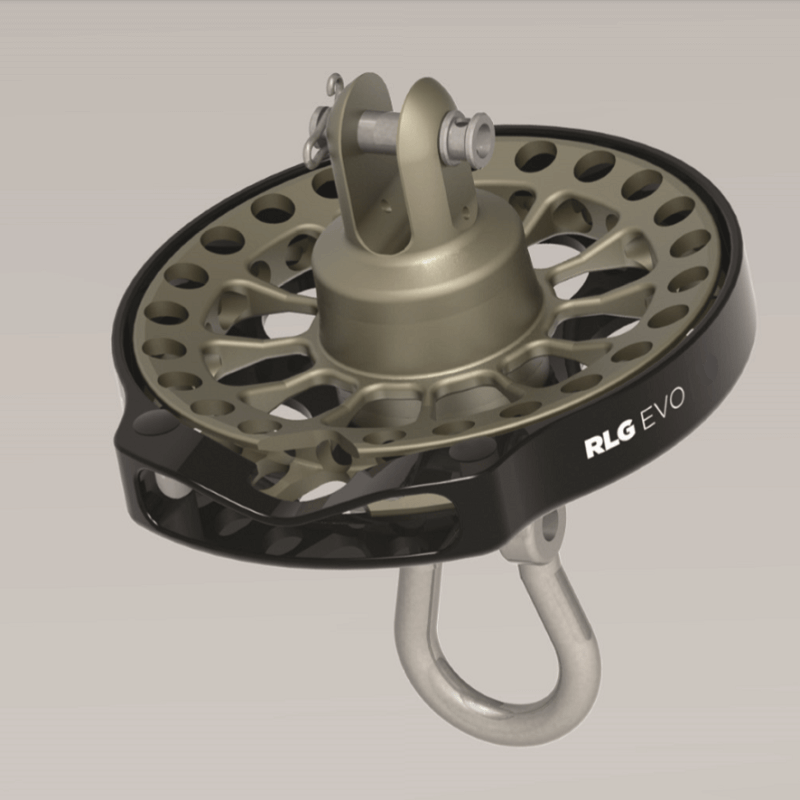

Specifications for Bamar RLG EVO 8 furler - drum, bottom-up
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 8 |
| Boat | |
| Recommended Boat size - Max (ft) | 33 |
| Recommended Boat size - Min (ft) | 26 |
| Load | |
| SWL (kg) | 2000 |
| Dimensions | |
| A (mm) | 8 |
| B (mm) | 12 |
| C (mm) | 91 |
| D (mm) | 110 |
| Drum Ø (mm) | 110 |
| Jaw pin Ø (mm) | 8 |
| Jaw width (mm) | 13 |
| Furling | |
| Headstay length Max (mm) | 15 |
| Weight | |
| Weight (g) | 540 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Bamar’s RLG EVO range of continuous line furlers are characterised by the quality of their engineering and bearing systems. The drums have a lightweight, compact design with a quick release pin system for fast removal of the stay from the drum. The same drum can be used to fly bottom-up code zeros and top-down asymmetric sails, with the use of an independent tack swivel. The Drum is supplied including HR Shackle deck attachment. The drums can be bought individually, or as part of a kit including drum and swivel (bottom-up furler set).
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 8 |
| Boat | |
|---|---|
| Recommended Boat size - Max (ft) | 33 |
| Recommended Boat size - Min (ft) | 26 |
| Load | |
|---|---|
| SWL (kg) | 2000 |
| Dimensions | |
|---|---|
| A (mm) | 8 |
| B (mm) | 12 |
| C (mm) | 91 |
| D (mm) | 110 |
| Drum Ø (mm) | 110 |
| Jaw pin Ø (mm) | 8 |
| Jaw width (mm) | 13 |
| Furling | |
|---|---|
| Headstay length Max (mm) | 15 |
| Weight | |
|---|---|
| Weight (g) | 540 |
