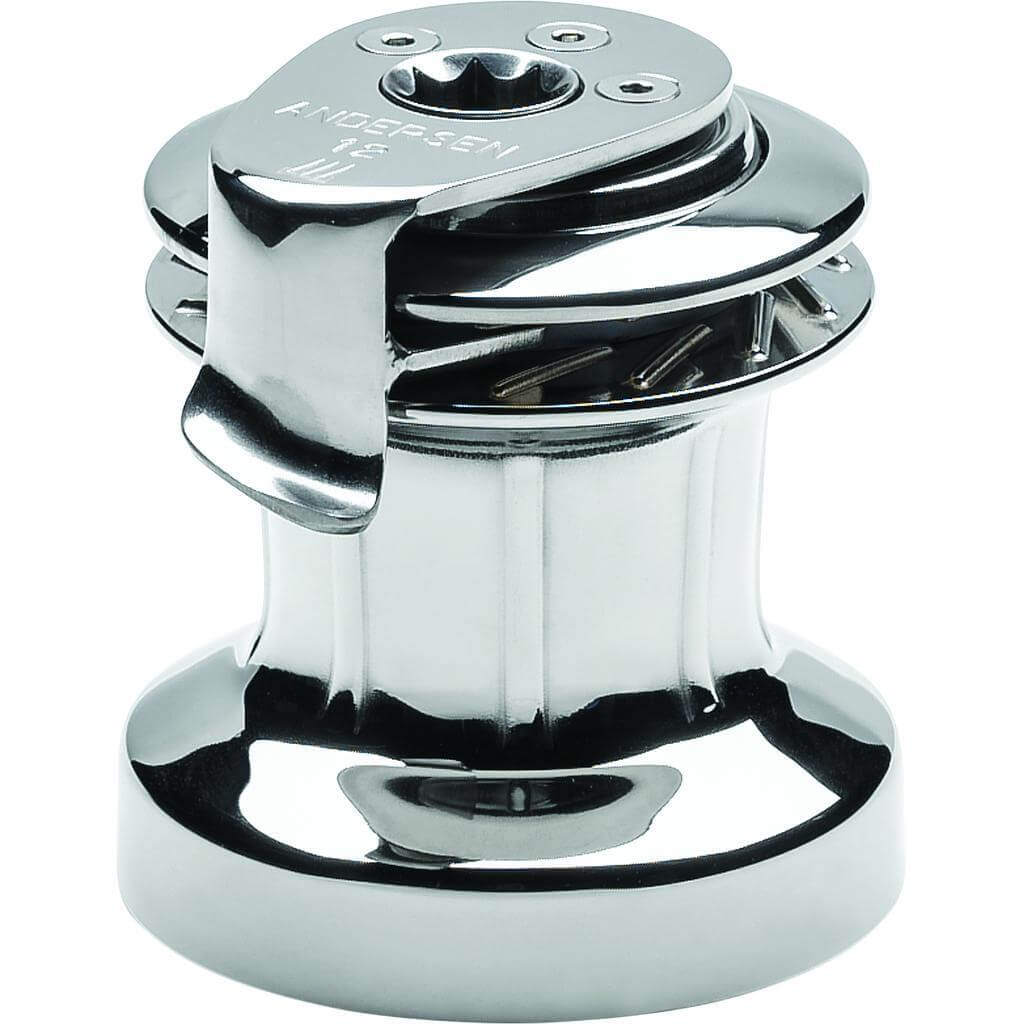

Specifications for Andersen 12 winch inox autovirante 1 velocità
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 14 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat | |
| Stile | Autostoppante |
| Dimensions | |
| A (mm) | 70 |
| B (mm) | 115 |
| C (mm) | 127 |
| D (mm) | 44 |
| Ø base (mm) | 115 |
| Ø tamburo (mm) | 70 |
| Altezza (mm) | 127 |
| Altezza ingresso cima (mm) | 44 |
| Winches | |
| Rapporto ingranaggi 1 (X : 1) | 1.3 |
| Marce (manuale) | 1 velocità |
| Rapporto potenza 1 (X : 1) | 9.5 |
| Material | |
| Materiale | Acciaio inox |
| Undefined | |
| Taglia | 12 |
| Weight | |
| Peso (g) | 2600 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 12ST v4.0 _ 12ST FS v2.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Manual Self Tailing Winches, Size 12 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
