Specifications for Andersen 12 winche autovirante de acero inoxidable de 1 velocidad
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
| Estilo | Self-Tailing |
| Dimensions | |
| A (mm) | 70 |
| B (mm) | 115 |
| C (mm) | 127 |
| D (mm) | 44 |
| Ø de base (mm) | 115 |
| Ø del tambor (mm) | 70 |
| Altura (mm) | 127 |
| Altura de entrada del cabo (mm) | 44 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 1.3 |
| Velocidades (manual) | 1-Speed |
| Relación de potencia 1 (X : 1) | 9.5 |
| Material | |
| Material | Stainless Steel |
| Undefined | |
| Tamaño | 12 |
| Weight | |
| Peso (g) | 2600 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 12ST v4.0 _ 12ST FS v2.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Manual Self Tailing Winches, Size 12 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|

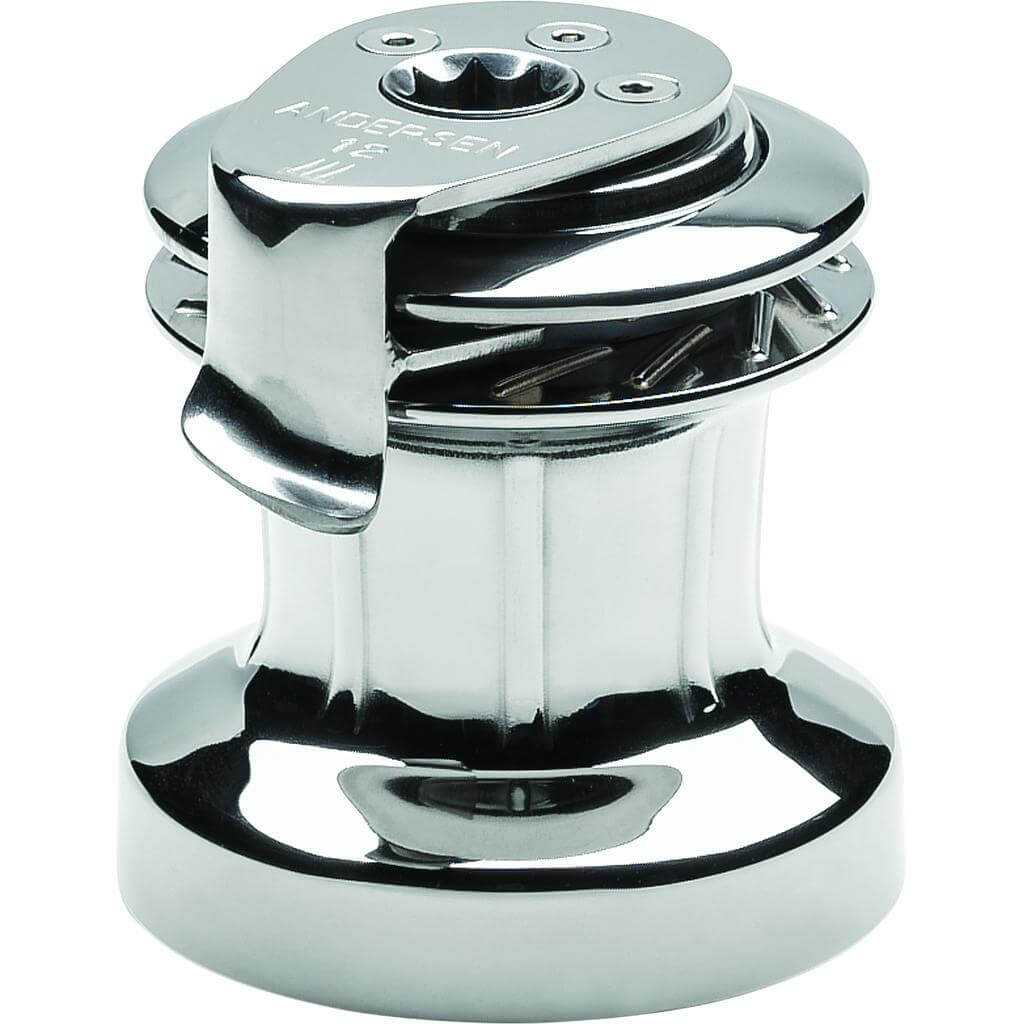

Full Stainless Self-Tailing winch featuring the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. Andersen's exclusive self-tailing mechanism automatically accommodates a wide range of different sheet and halyard sizes allowing each winch to serve numerous onboard purposes. The drive shaft stripper arm, self-tailing jaws, drum and upper & lower trim rings are manufactured in highest quality and beautifully polished grade 316 stainless steel resulting in a stunning, highly reflective winch.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
|---|---|
| Estilo | Self-Tailing |
| Dimensions | |
|---|---|
| A (mm) | 70 |
| B (mm) | 115 |
| C (mm) | 127 |
| D (mm) | 44 |
| Ø de base (mm) | 115 |
| Ø del tambor (mm) | 70 |
| Altura (mm) | 127 |
| Altura de entrada del cabo (mm) | 44 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 1.3 |
| Velocidades (manual) | 1-Speed |
| Relación de potencia 1 (X : 1) | 9.5 |
| Material | |
|---|---|
| Material | Stainless Steel |
| Undefined | |
|---|---|
| Tamaño | 12 |
| Weight | |
|---|---|
| Peso (g) | 2600 |
