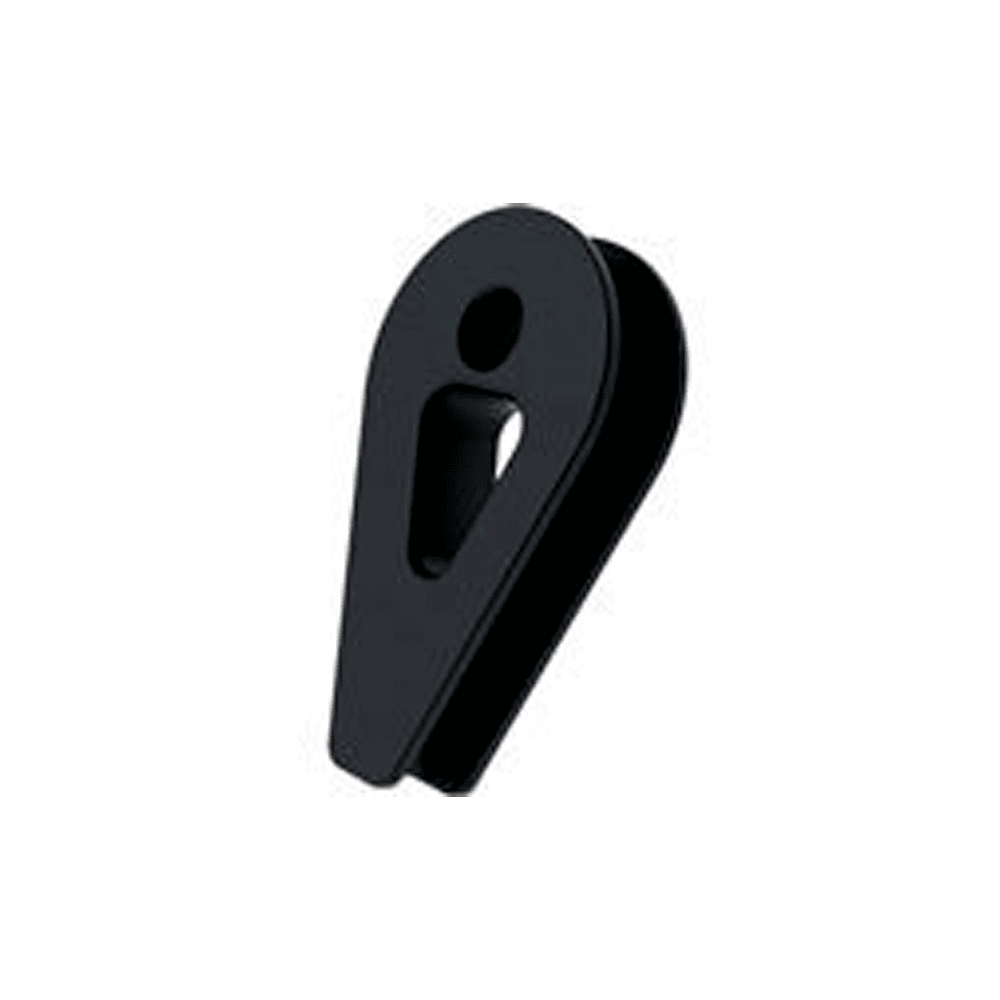

Specifications for Ronstan Série 80 emmagasineur - Cosse
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 9 |
| Boat | |
| Load | |
| Charge de travail (kg) | 950 |
| Charge de rupture (kg) | 1900 |
| Dimensions | |
| A (mm) | 35,6 |
| B (mm) | 9,8 |
| C (mm) | 9 |
| D (mm) | 4,4 |
| E (mm) | 8,8 |
| F (mm) | 12 |
| G (mm) | 24,3 |
| H (mm) | 7 |
| Largeur terminaison (mm) | 9,8 |
| Ø axe (mm) | 7 |
| Material | |
| Matériau | Aluminium 6061 |
| Weight | |
| Poids (g) | 8 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
R-RS208100_Ronstan S80 Gen 2 Top Down Furler Manual_001.pdf
Ronstan Series 80 Gen 2 Top Down Furler Manual
|
|
|
|
R-RS208000_Ronstan S80 Gen 2 Bottom Up Furler Manual_001.pdf
Ronstan Series 80 Gen 2 Bottom Up Furler Manual
|
|
|
|
R-RS208100_Ronstan S80 Gen 2 Top Down Furler Drawing_001.PDF
Ronstan S80 Gen 2 Top Down Furler Technical Drawing
|
|
|
|
R-RS208000_ Ronstan S80 Gen 2 Furler Drawing_001.PDF
Ronstan S80 Gen 2 Furler Technical Drawing
|
