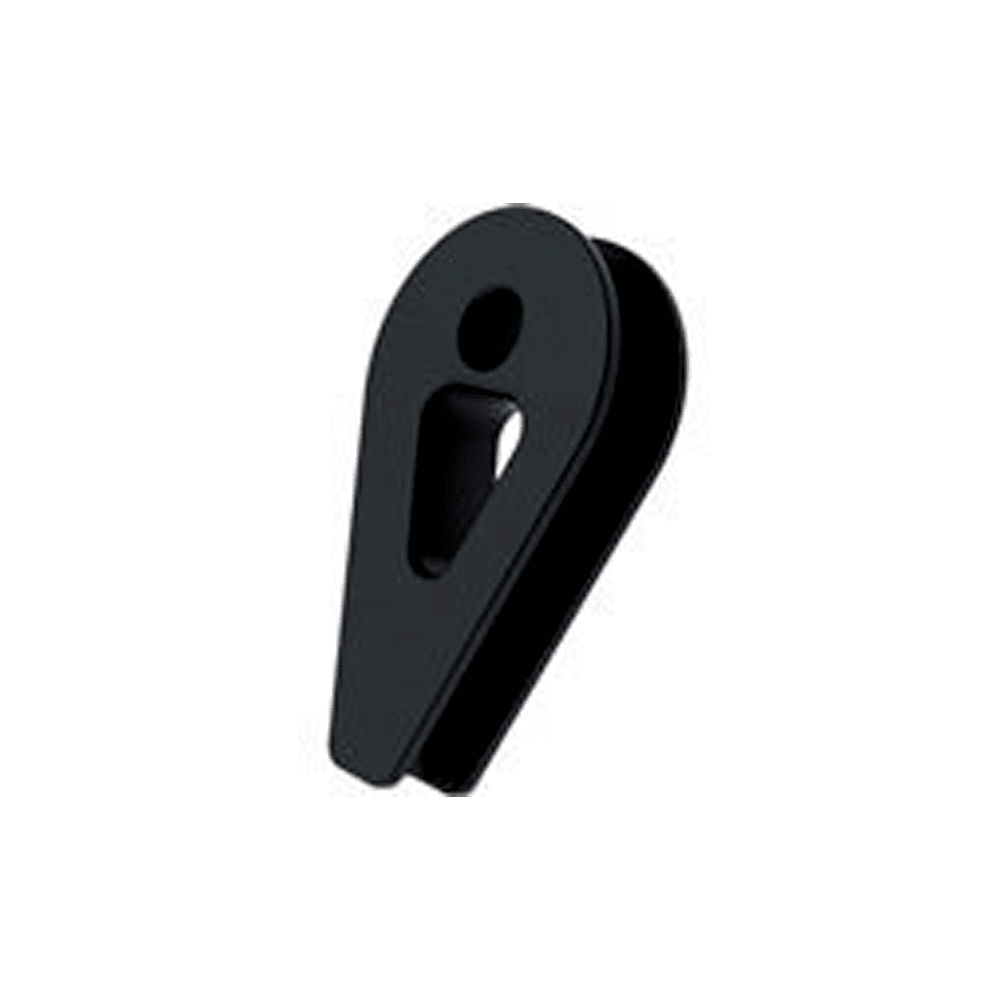

Specifications for Ronstan Series 80 furler - Thimble
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 9 |
| Boat | |
| Load | |
| SWL (kg) | 950 |
| NBL (kg) | 1900 |
| Dimensions | |
| A (mm) | 35.6 |
| B (mm) | 9.8 |
| C (mm) | 9 |
| D (mm) | 4.4 |
| E (mm) | 8.8 |
| F (mm) | 12 |
| G (mm) | 24.3 |
| H (mm) | 7 |
| Fitting width (mm) | 9.8 |
| Pin Ø (mm) | 7 |
| Material | |
| Material | AL6061 |
| Weight | |
| Weight (g) | 8 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
R-RS208100_Ronstan S80 Gen 2 Top Down Furler Manual_001.pdf
Ronstan Series 80 Gen 2 Top Down Furler Manual
|
|
|
|
R-RS208000_Ronstan S80 Gen 2 Bottom Up Furler Manual_001.pdf
Ronstan Series 80 Gen 2 Bottom Up Furler Manual
|
|
|
|
R-RS208100_Ronstan S80 Gen 2 Top Down Furler Drawing_001.PDF
Ronstan S80 Gen 2 Top Down Furler Technical Drawing
|
|
|
|
R-RS208000_ Ronstan S80 Gen 2 Furler Drawing_001.PDF
Ronstan S80 Gen 2 Furler Technical Drawing
|
