  2. Lopolight 2NM 112.5° Feu de côté bâbord, montage vertical avec câble de 2,5 mètres

Lopolight 2NM 112.5° Feu de côté bâbord, montage vertical avec câble de 2,5 mètres

https://www.upffront.com/web/image/product.template/102400/image_1920?unique=0341cc7

326,25 € 326.25 EUR 326,25 € TVA comprise

274,16 € TVA comprise

0% de réduction

Available on request

Jours
:
Heures
:
Minutes
:
Secs
  • Tension de fonctionnement
  • Power supply type
  • Current draw (mA @ 12VDC)
  • Current draw (mA @ 24VDC)
  • Power (W)
  • Approved to
  • Light colour
  • Light type
  • Luminous Intensity (cd)
  • Operating temperature
  • Visibility (NM)
  • Résistant à l'eau
  • Marque
  • Boat size (m)
  • Boat type
  • Dimensions (mm)
  • Feed wire gauge Min
  • Matériau
  • Couleur
  • Connection
  • Montage
  • Poids (g)
  • Garantie (année)

Cette combinaison n'existe pas.

Product Image
  • Feux de navigation filaire

    • Lopolight 2NM 112.5° Feu de côté bâbord, montage vertical avec câble de 2,5 mètres

    326,25 € 326,25 €
    0% Off
    Add to Cart
    Contactez-nous
    SKU:
    N/A
    Marque: Lopolight
    Shipping Info

    Garantie de remboursement de 30 jours

     Retours sous 14 jours

     Expédition express disponible

    Partager :

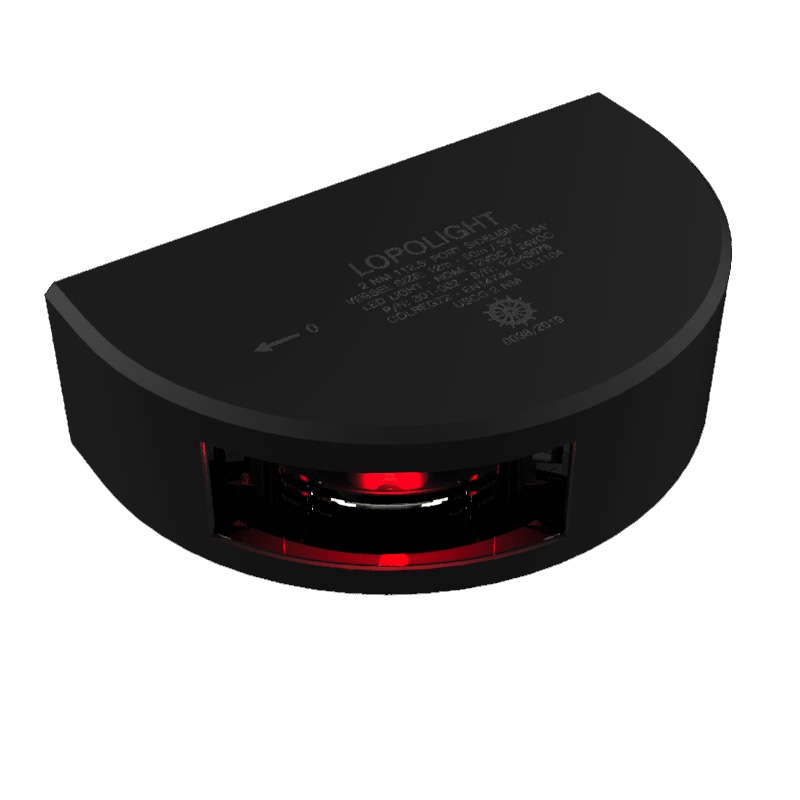

    Lopolight 2NM 112.5° Port Sidelight – Vertical Mount, 2.5m Cable (Silver or Black Anodised)

    [For vessels under 20m – LED navigation light]


    The Lopolight 2NM Port Sidelight is a precision-engineered LED navigation light for vessels under 20 metres. Emitting a crisp 112.5° red beam visible to 2 nautical miles, it delivers reliable, compliant portside visibility for safe navigation.

    Constructed from anodised aluminium, this model is available in Silver or Black finishes. Its compact vertical-mount design makes it ideal for installation on hull sides, pulpits, or confined deck areas. Rated IP68, the epoxy-sealed electronics ensure long-lasting resistance to saltwater, vibration, and UV exposure.

    The 2.5-metre marine-grade cable provides straightforward installation for standard routing distances.

    Key Features:

    • Suitable for vessels under 20 metres
    • 112.5° red beam, visible to 2NM
    • Vertical mount – ideal for hull or pulpit installations
    • Available in Silver or Black anodised aluminium housing
    • IP68 sealed with epoxy-filled electronics for marine durability
    • Supplied with 2.5m marine-grade cable
    • Low power draw – ~2 W at 10–32 V
    • Fully compliant with COLREG72, EN14744, and USCG standards
    • Alternative version available with 6m cable connection
    • Installation guide

    Spécifications

    Electrics
    Tension de fonctionnement 10-32
    Power supply type dc.
    Current draw (mA @ 12VDC) 90
    Current draw (mA @ 24VDC) 50
    Power (W) 1,2
    Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
    Luminous Intensity (cd) >5.4
    Operating temperature -25°C to 55°C
    Visibility (NM) 2
    Résistant à l'eau IP68
    Boat
    Boat size (m) Under 12M ou 12-20M ou 20-50M
    Dimensions
    Dimensions (mm) 92,5 x 28 x 49,7
    Rigging
    Feed wire gauge Min 0.5mm2 AWG22
    Material
    Matériau Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
    Undefined
    Couleur Noir ou Argent
    Compatibility
    Connection 2.5m cable
    Weight
    Poids (g) 380
    Garantie (année) 5 year limited warranty
