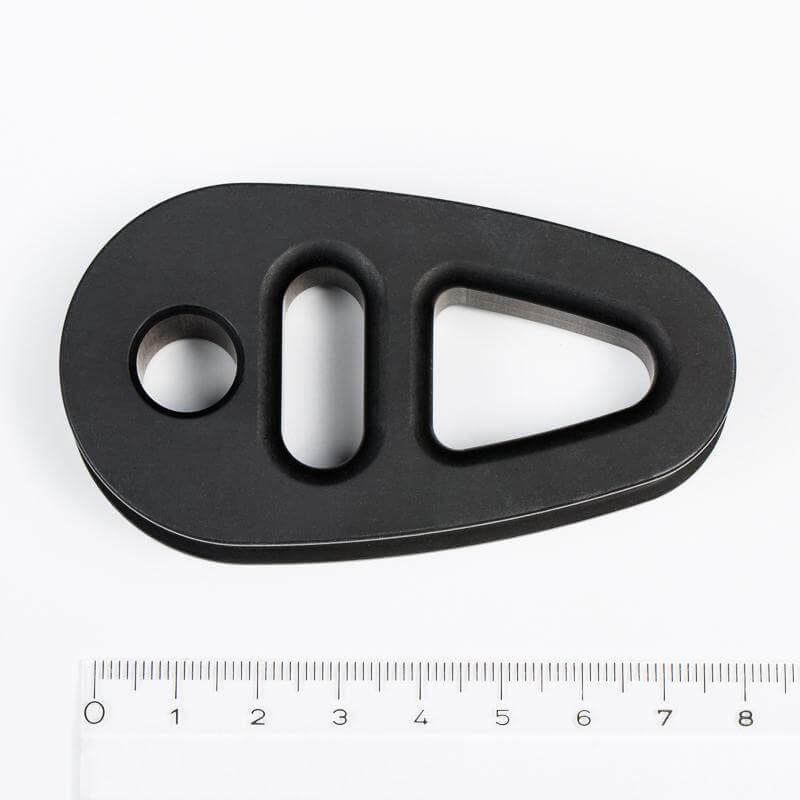

Specifications for LOOP Products Cosse d’emmagasineur - 13 mm
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 13 |
| Boat | |
| Load | |
| Charge de travail (kg) | 5000 |
| Charge de rupture (kg) | 10000 |
| Dimensions | |
| A (mm) | 82,5 |
| B (mm) | 45 |
| C (mm) | 13 |
| D (mm) | 16,5 |
| Largeur terminaison (mm) | 16,5 |
| Ø axe (mm) | 10-12 |
| Weight | |
| Poids (g) | 54 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
L-Kohlhoff Loop Products Furling Thimbles 9-15_001.pdf
Kohlhoff Loop Products FT7-FT15 Furling Thimbles Technical Drawing
|
|
|
|
L-Kohlhoff Loop Products Furling Thimble 13_001.pdf
Kohlhoff Loop Products FT13 Furling Thimble Technical Drawing
|
|
|
|
L-Kohlhoff Loop Products Furlingthimble Datsheet EN_001.pdf
Kohlhoff Loop Products Furlingthimble Datasheet
|
|
|
|
L-Kohlhoff Loop Products Catalogue 2018 EN_001.pdf
Kohlhoff Loop Products Catalogue 2018
|
KOHLHOFF LOOP® Furling Thimbles are made of high quality black anodized alloy. They have a straight pin hole and fit most common furling unit jaws. The lashing eye is smooth and round and designed to accommodate sufficient lashing to securely fasten the tack/head of the sail. Available in five different sizes specifically designed to fit standard furling rope diameters from 7 to 15mm.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 13 |
| Boat |
|---|
| Load | |
|---|---|
| Charge de travail (kg) | 5000 |
| Charge de rupture (kg) | 10000 |
| Dimensions | |
|---|---|
| A (mm) | 82,5 |
| B (mm) | 45 |
| C (mm) | 13 |
| D (mm) | 16,5 |
| Largeur terminaison (mm) | 16,5 |
| Ø axe (mm) | 10-12 |
| Weight | |
|---|---|
| Poids (g) | 54 |
