KA-KWS046_Karver Drawing Speed Winch_001.PDF

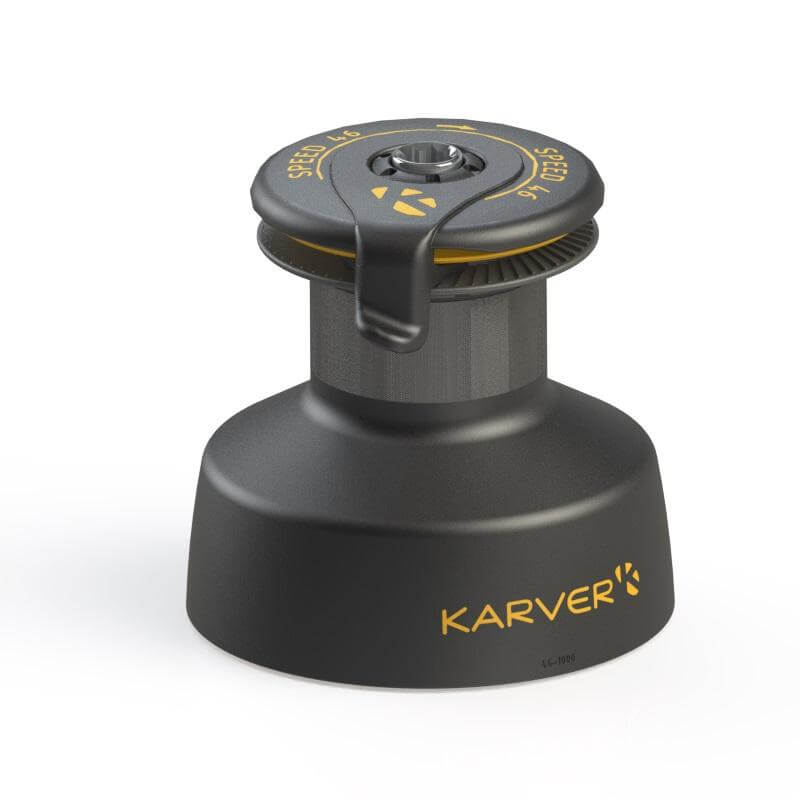

Karver 46-4 S/T Ultra Speed Winch Technical Drawing
|
|
|
|
KA-KWS046_Karver 2D Drawing Speed Winch_001.DWG
Karver KWS46 2D Speed Winch Technical Drawing
|
|
|
|
KA-KWS046_Karver 3D Drawing Speed Winch_001.IGS
Karver KWS46 3D Speed Winch Technical Drawing
|
|
|
|
KA-KW_Karver Winch Specifications FR EN_001.pdf
Karver Winch Specifications Diagram-French/English
|
|
|
|
KA-KW_Karver KWS46 KWP130 Winch Template FR EN_001.PDF
Karver KWS46 KWP130 Winch Datasheet-French/English
|
|
|
|
KA_Karver Winches Main Specs EN_001.pdf
Karver Winches Datasheet
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 14 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Boat | |
|---|---|
| Style | Auto-coinceur |
| Load | |
|---|---|
| Charge de travail (kg) | 1300 |
| Dimensions | |
|---|---|
| Diamètre de l'embase | 206 |
| Ø tourelle (mm) | 100 |
| Hauteur (mm) | 203 |
| Hauteur d’entrée du cordage (mm) | 97 |
| Winches | |
|---|---|
| Vitesse 1 (X : 1) | 0,46 |
| Vitesse 2 (X : 1) | 1,83 |
| Vitesse 3 (X : 1) | 2,3 |
| Vitesse 4 (X : 1) | 9,17 |
| Vitesse (manuelle) | 4 vitesses |
| Puissance 1 (X : 1) | 2,3 |
| Puissance 2 (X : 1) | 9,3 |
| Puissance 3 (X : 1) | 11,7 |
| Puissance 4 (X : 1) | 46,6 |
| Material | |
|---|---|
| Matériau | Aluminium |
| Undefined | |
|---|---|
| Taille | 46 |
| Weight | |
|---|---|
| Poids (g) | 8100 |
| Garantie (année) | 5 |
