KA-KWS046_Karver Drawing Speed Winch_001.PDF
Karver 46-4 S/T Ultra Speed Winch Technical Drawing
|
|
|
|
KA-KWS046_Karver 2D Drawing Speed Winch_001.DWG
Karver KWS46 2D Speed Winch Technical Drawing
|
|
|
|
KA-KWS046_Karver 3D Drawing Speed Winch_001.IGS
Karver KWS46 3D Speed Winch Technical Drawing
|
|
|
|
KA-KW_Karver Winch Specifications FR EN_001.pdf
Karver Winch Specifications Diagram-French/English
|
|
|
|
KA-KW_Karver KWS46 KWP130 Winch Template FR EN_001.PDF
Karver KWS46 KWP130 Winch Datasheet-French/English
|
|
|
|
KA_Karver Winches Main Specs EN_001.pdf
Karver Winches Datasheet
|

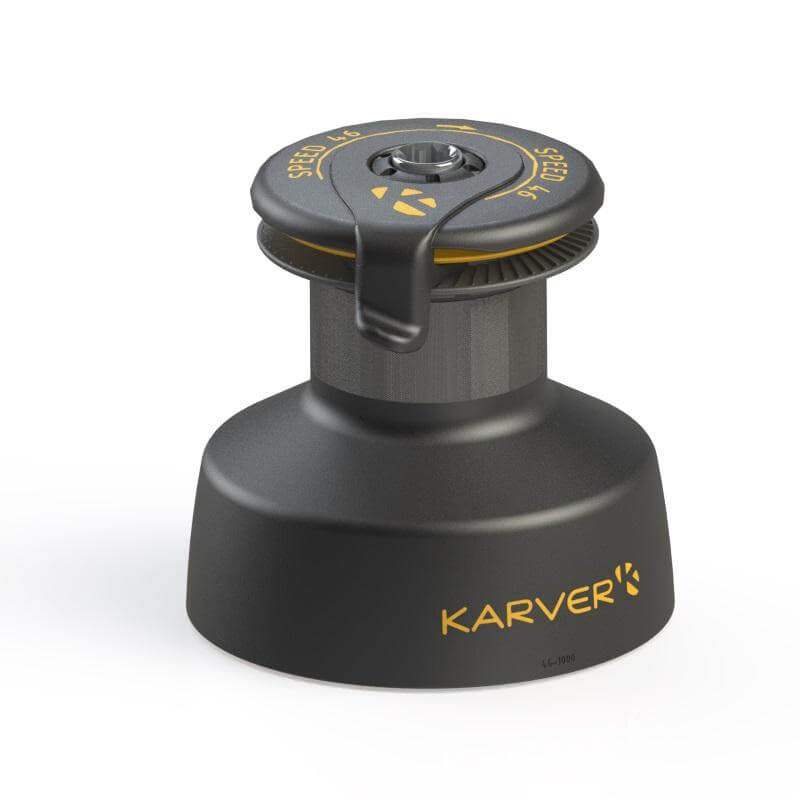

Karver 46 4-Speed S/T Ultra Speed Winch
Pontos winches by Karver are based on epicyclic gear trains associated with automatic load detection technology. Depending on the choice of model this approach can offer either 3 times more power (KPW) or 6 times more speed (KSW) compared to all other winches on the market.
The additional gears of the Speed range provide the ability to winch in much more quickly than conventional winches. When in first gear a single turn on the winch handle brings in 6 times the amount of line compared to a normal two speed winch. Changing gear is simple. When too much pressure builds up on the winch handle, just reverse the direction and the next gear is engaged. Once the line pressure is off, the winch reverts to the most suitable gearing for the next time you winch.
The drum is constructed in hard anodized aluminium, gears and clutch in 17.4 PH stainless steel and copper aluminium alloy and needle bearings in polyoxymethylene. All winches are self-tailing, enabling single handed sail trimming. All Pontos winches by Karver feature a 5 year warranty.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
|---|---|
| Estilo | Self-Tailing |
| Load | |
|---|---|
| SWL (kg) | 1300 |
| Dimensions | |
|---|---|
| Ø de base (mm) | 206 |
| Ø del tambor (mm) | 100 |
| Altura (mm) | 203 |
| Altura de entrada del cabo (mm) | 97 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 0.46 |
| Relación de engranajes 2 (X : 1) | 1.83 |
| Relación de engranajes 3 (X : 1) | 2.3 |
| Relación de engranajes 4 (X : 1) | 9.17 |
| Velocidades (manual) | 4-Speed |
| Relación de potencia 1 (X : 1) | 2.3 |
| Relación de potencia 2 (X : 1) | 9.3 |
| Relación de potencia 3 (X : 1) | 11.7 |
| Relación de potencia 4 (X : 1) | 46.6 |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Tamaño | 46 |
| Weight | |
|---|---|
| Peso (g) | 8100 |
| Garantía (años) | 5 |
