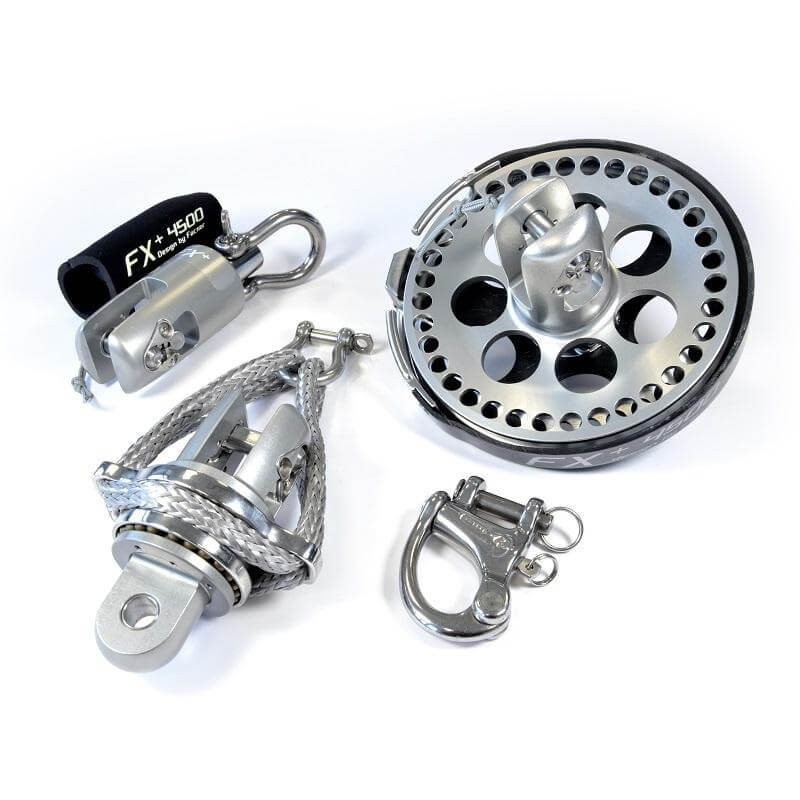

The Facnor FASTFX+7000 Furling Pack provides a flexible, cost effective solution for both bottom-up and top-down furling applications. The unique Thimble FAST unit is permanently attached to the gennaker/torsional cable and slots into the standard FX+7000 furling drum jaw, straight out of the bag allowing the use of the standard FX+7000 Furling drum for bottom-up sails as well. The Facnor FASTFX+7000 Furling Pack consists of the FX+7000 Furling drum with snap shackle, the FX+7000 Thimble Fast, the FX+7000 swivel plus HR shackle and a neoprene swivel protective cover.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 10 |
| Boat |
|---|
| Load | |
|---|---|
| Charge de travail (kg) | 7000 |
| Charge de rupture (kg) | 14000 |
| Dimensions | |
|---|---|
| Ø tourelle (mm) | 212 |
| Ø axe de la chape (mm) | 14 |
| Largeur de chape (mm) | 26 |
| Weight | |
|---|---|
| Poids (g) | 3393 |
