F-FX+4500+_Facnor Drawing Drum Top-Swivel_001.pdf
Facnor FX+4500+ Drum Top-Swivel Technical Drawing
|
|
|
|
F-FX+4500+_Facnor Drawing Drum Top-Swivel Spare Parts_001.pdf
Facnor FX+4500+ Drum Top-Swivel Spare Parts Technical Drawing
|
|
|
|
F_Facnor Catalogue 2019-2020 EN_001.pdf
Facnor Products Catalogue 2019-2020
|
|
|
|
F-FX+_Facnor Technical Brochure Furlers Spare Parts EN_001.pdf
Facnor FX+ Furlers Spare Parts Datasheet
|
|
|
|
F-FX+_Facnor FAST Model Instructions EN_001.pdf
Facnor FX+ FAST Model Manual
|
|
|
|
Facnor_FX+_Instruction_Manual.pdf
Facnor FX & FXT Installation and User Manual EN
|

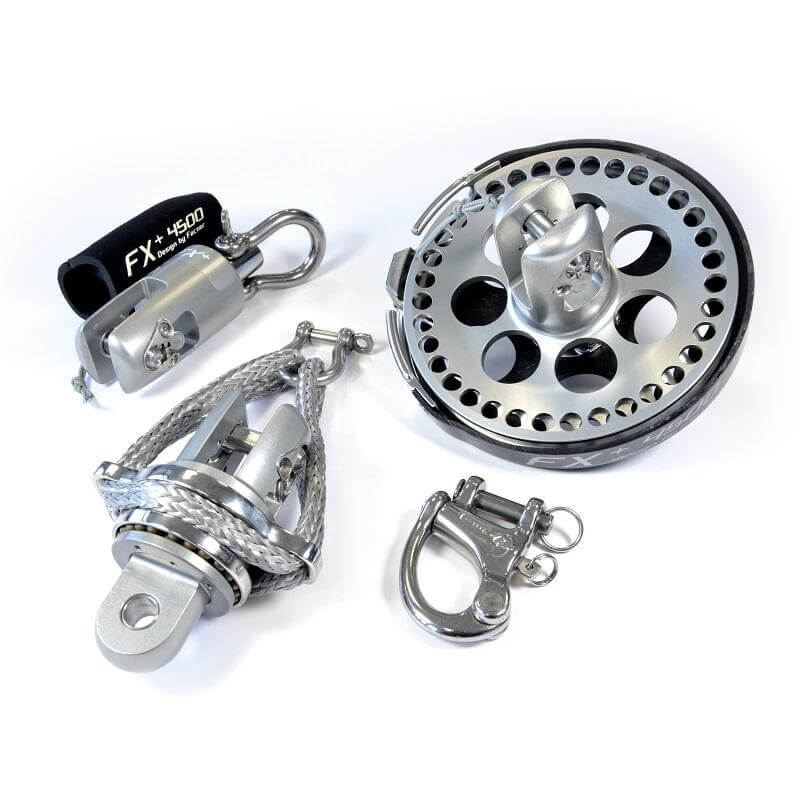

The Facnor FASTFX+4500 Furling Pack provides a flexible, cost effective solution for both bottom-up and top-down furling applications. The unique Thimble FAST unit is permanently attached to the gennaker/torsional cable and slots into the standard FX+4500 furling drum jaw, straight out of the bag allowing the use of the standard FX+4500 Furling drum for bottom-up sails as well. The Facnor FASTFX+4500 Furling Pack consists of the FX+4500 Furling drum with snap shackle, the FX+4500 Thimble Fast, the FX+4500 swivel plus HR shackle and a neoprene swivel protective cover.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 10 |
| Boat |
|---|
| Load | |
|---|---|
| Charge de travail (kg) | 4500 |
| Charge de rupture (kg) | 9000 |
| Dimensions | |
|---|---|
| Ø tourelle (mm) | 181,5 |
| Ø axe de la chape (mm) | 12 |
| Largeur de chape (mm) | 19 |
| Weight | |
|---|---|
| Poids (g) | 2172 |
