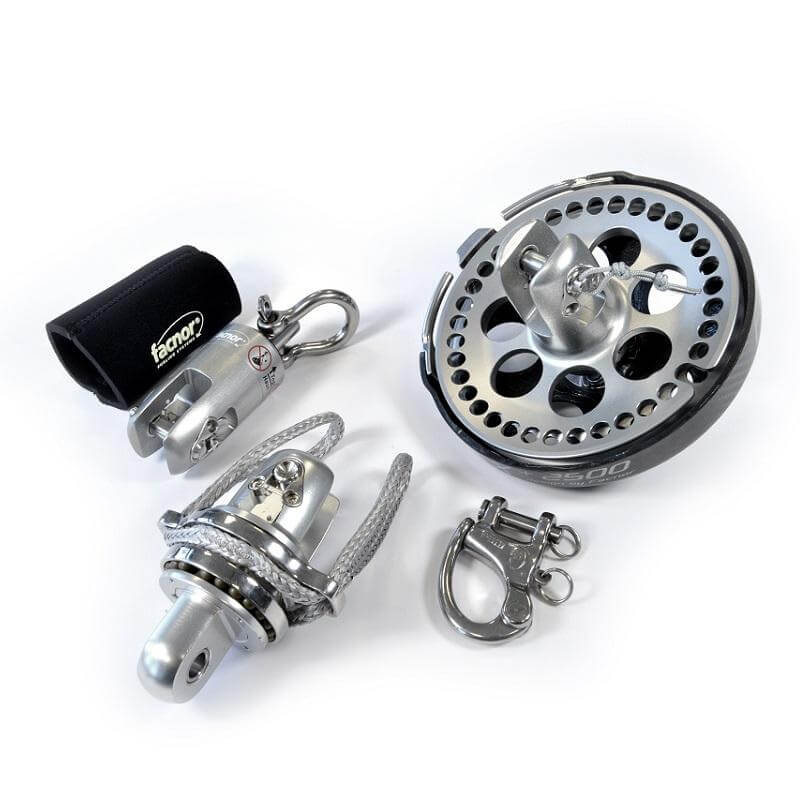

The Facnor FASTFX+2500 Furling Pack provides a flexible, cost effective solution for both bottom-up and top-down furling applications. The unique Thimble FAST unit is permanently attached to the gennaker/torsional cable and slots into the standard FX+2500 furling drum jaw, straight out of the bag allowing the use of the standard FX+2500 Furling drum for bottom-up sails as well. The Facnor FASTFX+2500 Furling Pack consists of the FX+2500 Furling drum with snap shackle, the FX+2500 Thimble Fast, the FX+2500 swivel plus HR shackle and a neoprene swivel protective cover.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 8 |
| Boat |
|---|
| Load | |
|---|---|
| Charge de travail (kg) | 2500 |
| Charge de rupture (kg) | 5000 |
| Dimensions | |
|---|---|
| Ø tourelle (mm) | 161 |
| Ø axe de la chape (mm) | 10 |
| Largeur de chape (mm) | 17,5 |
| Weight | |
|---|---|
| Poids (g) | 1499 |
