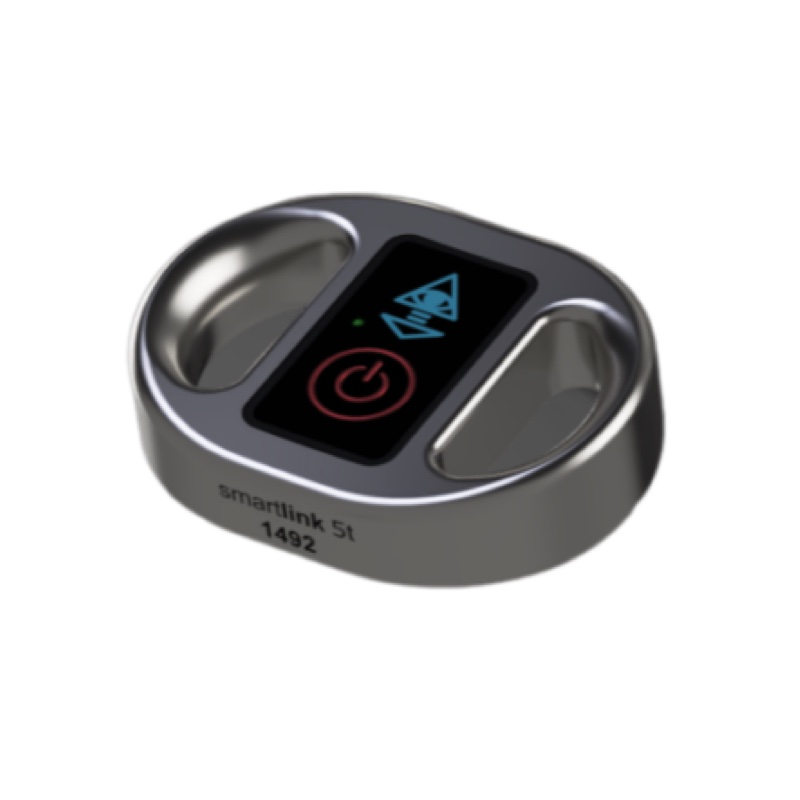

Cyclops Marine smartlink² 5t – Wireless Load Sensor
The Cyclops Marine smartlink² 5t is a versatile and powerful wireless load sensor, designed for sportsboats, performance keelboats, and mid-sized race yachts. Capable of handling working loads up to 5 tonnes, it provides real-time load monitoring to help sailors optimise rigging tension, fine-tune sail trim, and prevent overloads. As part of the smartlink² v2 series, the 5t model benefits from extended battery life, advanced data streaming and logging, and seamless wireless integration with onboard and third-party sailing instruments.
Advanced Wireless Load Monitoring
Designed for mid-range load applications, the smartlink² 5t replaces a traditional soft link in running rigging, sheets, and high-load control lines. Whether on a fast sportsboat or a performance cruiser-racer, it delivers live load data, allowing sailors and riggers to make data-driven rig adjustments for maximum efficiency and safety.
Key Features & Benefits
✅ Optimised for Mid-Range Loads – Handles working loads up to 5 tonnes, making it ideal for sportsboats, club racers, and performance yachts.
✅ Wireless Connectivity – Integrates seamlessly via NMEA 2000, Bluetooth-enabled displays, and mobile devices through the Cyclops Marine app, providing instant access to load data.
✅ Real-Time Load Data & Logging – Live monitoring and onboard data logging allow sailors to track loads for performance tuning, safety management, and long-term analysis.
✅ Upgraded Battery Life – The v2 series offers significantly improved battery performance, ensuring reliable operation over extended racing and cruising sessions.
✅ Marine-Grade Durability – Designed to endure harsh offshore conditions, with rugged, waterproof construction for longevity and reliability.
✅ Easy Installation – The smartlink² 5t is easily integrated into soft rigging and control lines without requiring additional hardware, making it a simple and effective upgrade.
Where the 5t Fits in the smartlink² Range
The smartlink² 5t sits between the 2t and 10t models in the smartlink² range, which includes the Nano (0.6t), 2t, 5t, 10t, and 20t working load versions. The 5t model is best suited for:
✔ Sportsboats & small keelboats – Optimise jib and mainsail trim with live load tracking.
✔ Performance cruiser-racers – Fine-tune backstay, vang, and halyard loads.
✔ Multihulls – Monitor running rigging loads to ensure efficiency and prevent excessive stress on components.
Optimise Performance with Load Data
By incorporating the smartlink² 5t into your sailing setup, you can:
✔ Maintain optimal sail and rig loads for maximum efficiency and safety.
✔ Fine-tune rigging settings in real-time for enhanced performance.
✔ Prevent hardware and line failures by monitoring and managing loads dynamically.
✔ Record and analyse load trends to refine performance over time.
The Cyclops Marine smartlink² 5t is a powerful tool for competitive sailors, performance-focused crews, and serious cruiser-racers, offering cutting-edge load monitoring in a lightweight, easy-to-use package. With wireless connectivity, improved battery life, and enhanced data streaming, the smartlink² 5t sets a new standard in precision load sensing for mid-sized yachts and raceboats.
Upgrade your rigging today and gain a competitive edge with real-time load intelligence.
Spécifications
| Electrics | |
|---|---|
| Précision | +/-1% |
| Durée de vie de batterie | 2000 |
| Refresh rate (Hz) | 1 |
| Résistant à l'eau | IP68 |
| Boat |
|---|
| Load | |
|---|---|
| Charge de travail (kg) | 5000 |
| Dimensions | |
|---|---|
| Hauteur (mm) | 22 |
| Length (mm) | 83 |
| Width (mm) | 66 |
| Weight | |
|---|---|
| Poids (g) | 210 |
