Specifications for Ronstan Serie 160 Furler - Schnappschäkel
| Boat | |
|---|---|
| Style | Fixed Clevis Bail |
| Load | |
| SWL (kg) | 2800 |
| NBL (kg) | 7000 |
| Dimensions | |
| A (mm) | 65 |
| B (mm) | 14 |
| C (mm) | 10 |
| D (mm) | 21 |
| E (mm) | 19 |
| Pin Ø (mm) | 10 |
| Material | |
| Material | Edelstahl |
| Weight | |
| Gewicht (g) | 257 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
R-RS216100_Ronstan S160 Gen 2 Top Down Furler Manual_001.pdf
Ronstan Series 160 Gen 2 Top Down Furler Manual
|
|
|
|
R-RS216000_Ronstan S160 Gen 2 Bottom Up Furler Manual_001.pdf
Ronstan Series 160 Gen 2 Bottom Up Furler Manual
|
|
|
|
R-RS_Ronstan Furlers Accessories Compatibility_001.pdf
Ronstan Furlers Accessories Compatibility
|
|
|
|
R-RS216100_Ronstan S160 Gen 2 Top Down Furler Drawing_001.PDF
Ronstan S160 Gen 2 Top Down Furler Technical Drawing
|
|
|
|
R-RS216000_Ronstan S160 Gen 2 Furler Drawing_001.PDF
Ronstan S160 Gen 2 Furler Technical Drawing
|

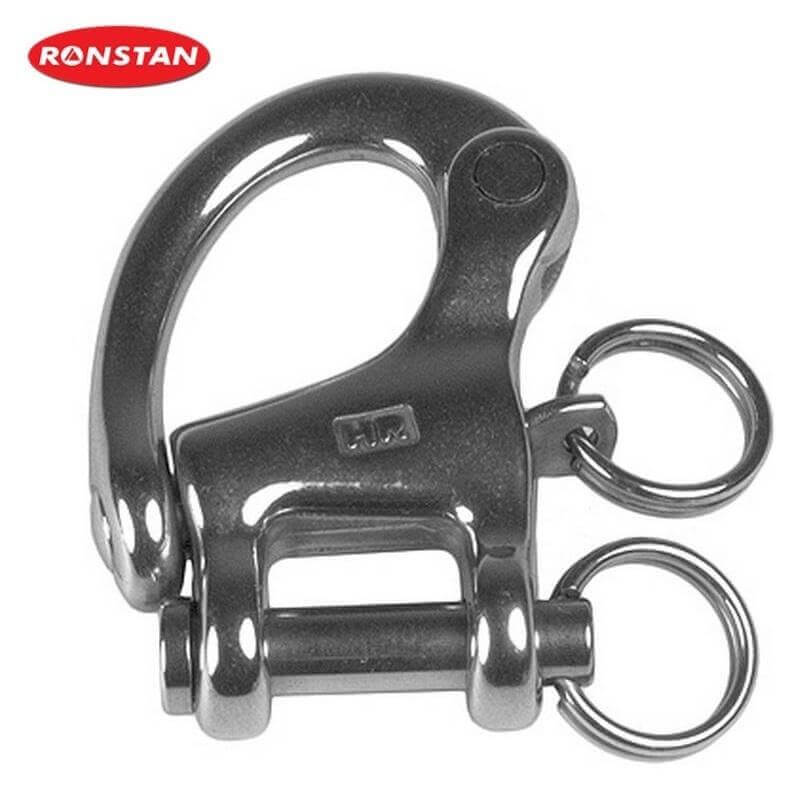

Das Ronstan Sortiment an Furling Systemen mit Endlosleine bietet sowohl Cruise- als auch Race-Seglern hohe Leistung und Zuverlässigkeit. Dieser Schnappschäkel kann den Schäkel entweder am Furler oder am Top Wirbel ersetzen, um den Furler schnell am Bugbeschlag oder den Top Wirbel am Fall zu befestigen. Dieser Schnappschäkel passt zu den Furlern RS216000 & RS216100 und dem Top Wirbel RS216010.
