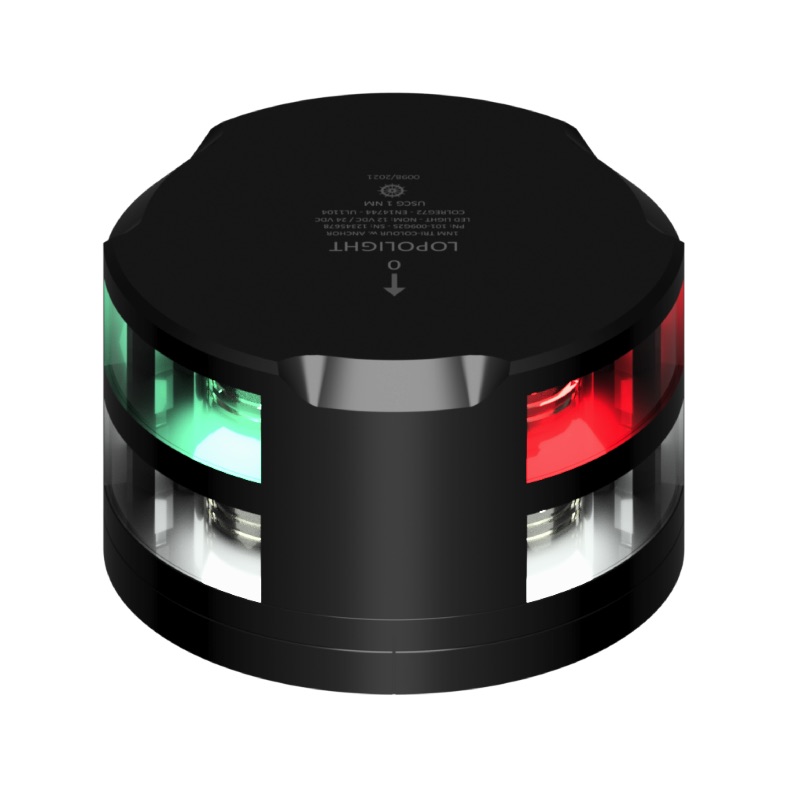

    Lopolight 1NM Tri-colour / Anchor – 0.7m Cable (Silver or Black Anodised)

    [Tri-function masthead light – For sailing vessels under 12m]


    The Lopolight 1NM Tri-colour / Anchor is a compact, dual-mode masthead navigation light designed for sailing vessels under 12 metres. It combines standard tri-colour navigation (port, starboard, stern) with an all-round white anchor light in one efficient, low-profile unit — ideal for cruising sailors looking to streamline masthead lighting.

    In tri-colour mode, the unit emits three precise sectors — 112.5° red (port), 112.5° green (starboard), and 135° white (stern) — all visible to 1 nautical mile in full compliance with COLREG72. When anchored, it switches to a 360° all-round white light to meet anchor light requirements.

    Housed in durable anodised aluminium, this light is available in both Silver and Black finishes, with a flat-base design optimised for masthead installation. Internally, the electronics are IP68 sealed and epoxy bonded for maximum protection against water, vibration, and UV.

    Key Features:

    • Suitable for sailing vessels under 12 metres
    • Dual function: Tri-colour navigation + Anchor light in one unit
    • Precise sector angles: 112.5° (port/starboard), 135° (stern), 360° (anchor)
    • Flat-base masthead mount for compact installations
    • Available in Silver or Black anodised aluminium housing
    • IP68 sealed, with epoxy-filled electronics for marine reliability
    • Supplied with 0.7m marine-grade cable
    • Low power draw – ~2 W total at 10–32 V
    • Fully compliant with COLREG72, EN14744, and USCG standards
    • Alternative version available with integrated Windex mount and light, Plus a silver version with 22m cable

    Spezifikationen

    Electrics
    Spannung unter Betrieb 10-32
    Power supply type dc.
    Current draw (mA @ 12VDC) 150
    Current draw (mA @ 24VDC) 81
    Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
    Operating temperature -25°C to 55°C
    Sichtweite (NM) 1
    Wasserdichtigkeit IP68
    Boat
    Boat size (m) Under 12M
    Dimensions
    Dimensions (mm) Ø92,5mm x 68mm
    Material
    Material Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
    Undefined
    Farbe Schwarz oder Silber
    Compatibility
    Connection 0.7m cable
    Weight
    Gewicht (g) 730
