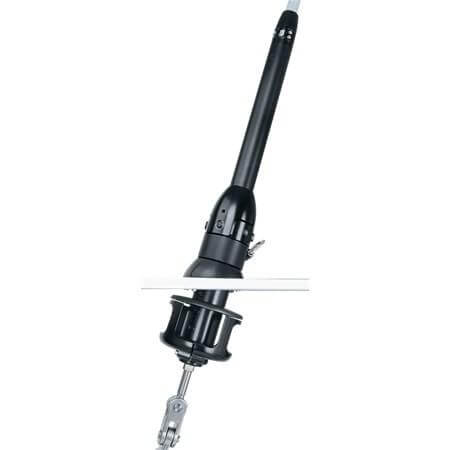

Specifications for Harken MKIV Unit 1 Underdeck Rollreffanlage
| Boat | |
|---|---|
| Empfohlene max. Bootsgröße (ft.) | 36 |
| Empfohlene min. Bootsgröße (ft.) | 28 |
| Dimensions | |
| A (mm) | 397 - 270 |
| B (mm) | 140 |
| C (mm) | 244 - 117 |
| J (mm) | 25 |
| K (mm) | 29 |
| Trommel Ø (mm) | 140 |
| Pin Ø (mm) | 12,7 |
| Max. Drahtdurchmesser (mm) | 8 |
| Furling | |
| Extrusion Länge (mm) | 2130 |
| Extrusion Ø (mm) | 25 |
| Extrusion Referenz | 7411.30 |
| Extrusion Gewicht (g/m) | 515 |
| Max. Vorstaglänge (mm) | 16120 |
| Standard Vorstaglänge (mm) | 13990 |
| Luff groove (Single/Double) | Doppelte Vorlieksnut |
| Luff rope Ø (mm) | 5 |
| Rigging | |
| Max. Rod dash Größe | -10 |
| Rod Ø Max (mm) | 6.35 |
| Weight | |
| Gewicht (g) | 43 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Harken MKIV, MKIC Ocean & MKIV Underdeck Range.pdf
Harken Catalogue for the MKIV, MKIV Ocean and MKIV Underdeck Ranges.
|
|
|
|
MKIV Unit 1,2,3 UD_EN.pdf
English Jib Reefing and Furling Installation Manual for H-7411.11 1/2 (Unit 1), H-7412.11 5/8 (Unit 2), H-7413.11 3/4 (Unit 3) and H-7413.11 7/8 (Unit 3) Furlers
|
