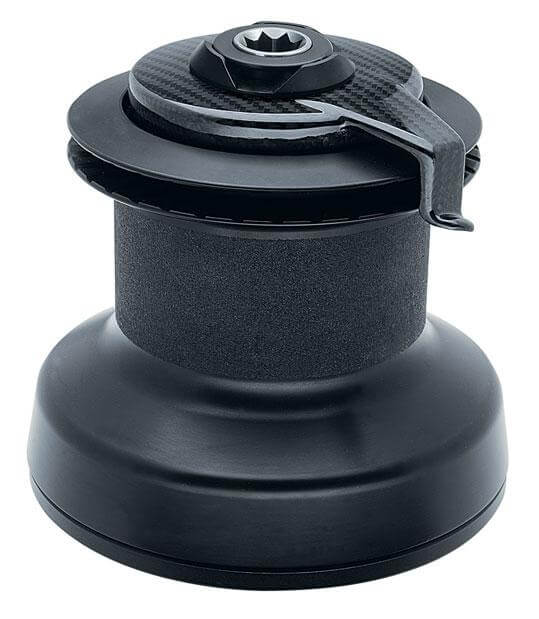

Specifications for Harken 50 3-Gang S/T Performa™ Winsch
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 14 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Boat | |
| Style | Selbstholend |
| Load | |
| SWL (kg) | 1450 |
| Dimensions | |
| A (mm) | 110 |
| B (mm) | 195 |
| C (mm) | 212 |
| D (mm) | 97 |
| Basis Ø (mm) | 195 |
| Trommel Ø (mm) | 110 |
| Höhe (mm) | 212 |
| Leinen Einlaufhöhe (mm) | 97 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 1 |
| Getriebuntersetzung 2. Gang (X : 1) | 2,4 |
| Getriebuntersetzung 3. Gang (X : 1) | 10,9 |
| Gänge (manuell) | 3-Speed |
| Kraftuntersetzung 1. Gang (X : 1) | 4,62 |
| Kraftuntersetzung 2. Gang (X : 1) | 11,1 |
| Kraftuntersetzung 3. Gang (X : 1) | 50,4 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Größe | 50 |
| Weight | |
| Gewicht (g) | 6800 |
Harken Performa™ winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fibre racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes. All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Spezifikationen
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 14 |
| Empfohlener min. Leinendurchmesser (mm) | 8 |
| Boat | |
|---|---|
| Style | Selbstholend |
| Load | |
|---|---|
| SWL (kg) | 1450 |
| Dimensions | |
|---|---|
| A (mm) | 110 |
| B (mm) | 195 |
| C (mm) | 212 |
| D (mm) | 97 |
| Basis Ø (mm) | 195 |
| Trommel Ø (mm) | 110 |
| Höhe (mm) | 212 |
| Leinen Einlaufhöhe (mm) | 97 |
| Winches | |
|---|---|
| Getriebuntersetzung 1. Gang (X : 1) | 1 |
| Getriebuntersetzung 2. Gang (X : 1) | 2,4 |
| Getriebuntersetzung 3. Gang (X : 1) | 10,9 |
| Gänge (manuell) | 3-Speed |
| Kraftuntersetzung 1. Gang (X : 1) | 4,62 |
| Kraftuntersetzung 2. Gang (X : 1) | 11,1 |
| Kraftuntersetzung 3. Gang (X : 1) | 50,4 |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Größe | 50 |
| Weight | |
|---|---|
| Gewicht (g) | 6800 |
