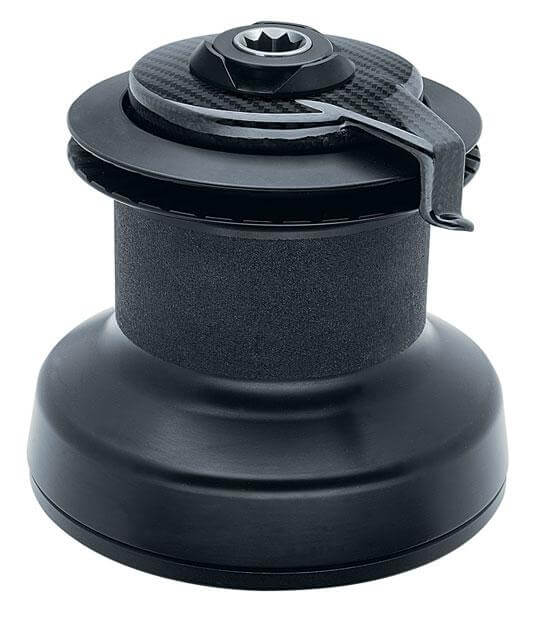

Specifications for Harken 50 3 vitesses S/T Winch Performa™
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 14 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Load | |
| Charge de travail (kg) | 1450 |
| Dimensions | |
| A (mm) | 110 |
| B (mm) | 195 |
| C (mm) | 212 |
| D (mm) | 97 |
| Diamètre de l'embase | 195 |
| Ø tourelle (mm) | 110 |
| Hauteur (mm) | 212 |
| Hauteur d’entrée du cordage (mm) | 97 |
| Winches | |
| Vitesse 1 (X : 1) | 1 |
| Vitesse 2 (X : 1) | 2,4 |
| Vitesse 3 (X : 1) | 10,9 |
| Vitesse (manuelle) | 3 vitesses |
| Puissance 1 (X : 1) | 4,62 |
| Puissance 2 (X : 1) | 11,1 |
| Puissance 3 (X : 1) | 50,4 |
| Material | |
| Matériau | Aluminum |
| Undefined | |
| Taille | 50 |
| Weight | |
| Poids (g) | 6800 |
Harken Performa™ winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fibre racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes. All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 14 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Boat | |
|---|---|
| Style | Self-Tailing |
| Load | |
|---|---|
| Charge de travail (kg) | 1450 |
| Dimensions | |
|---|---|
| A (mm) | 110 |
| B (mm) | 195 |
| C (mm) | 212 |
| D (mm) | 97 |
| Diamètre de l'embase | 195 |
| Ø tourelle (mm) | 110 |
| Hauteur (mm) | 212 |
| Hauteur d’entrée du cordage (mm) | 97 |
| Winches | |
|---|---|
| Vitesse 1 (X : 1) | 1 |
| Vitesse 2 (X : 1) | 2,4 |
| Vitesse 3 (X : 1) | 10,9 |
| Vitesse (manuelle) | 3 vitesses |
| Puissance 1 (X : 1) | 4,62 |
| Puissance 2 (X : 1) | 11,1 |
| Puissance 3 (X : 1) | 50,4 |
| Material | |
|---|---|
| Matériau | Aluminum |
| Undefined | |
|---|---|
| Taille | 50 |
| Weight | |
|---|---|
| Poids (g) | 6800 |
