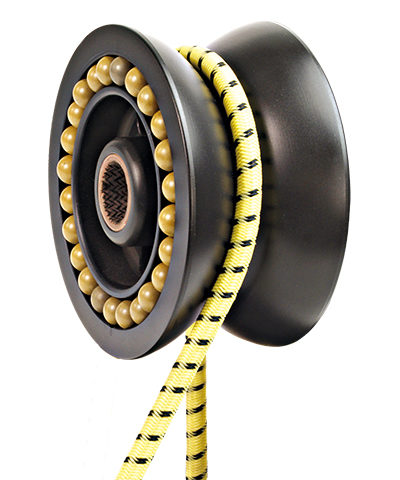

Antal Tulip Sheave 60 mm, Aluminium
A genuine Antal replacement tulip sheave for wide lead angles with minimal footprint. The 60 mm aluminium wheel uses self-captive side ball bearings in Torlon® and a composite axial/radial bearing to manage side loads—ideal for compact organisers and cross-deck leads where a revolving block won’t fit.
Why it’s a smart upgrade
-
Handles acute lead angles while keeping decks tidy and low-profile
-
Ultra-low friction from self-captive side balls (Torlon®)
-
Hard-anodised, Teflon-coated aluminium for long service life
Key specifications
-
Sheave Ø: 60 mm
-
Max rope Ø: 14 mm
-
Safe Working Load (SWL): 2,200 kg
-
Thickness (T): 38 mm
-
Hub Ø (D2): 15 mm
-
Side bearing: Torlon® balls (self-captive)
-
Axial/radial bearing: Composite fibre
-
Sheave material: Aluminium
Typical applications
-
Tulip organisers (2–6 sheave banks), cross-deck and pit leads
-
Compact turning points where a standard revolving block adds too much bulk
Fit & compatibility notes
-
Confirm your installation’s sheave Ø (60 mm), hub Ø (15 mm) and thickness (38 mm) before ordering
-
Designed for rope up to 14 mm; not suitable for wire or rod
